• Country
• United States of America (USA)

• Manufacturer / Brand
• Trav-Ler Karenola Radio & Television Corp.(Travler); Chicago

• Year
• 1952 ?

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 354580

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 24

• Valves / Tubes
• 6AG5 6AU6 12AT7 12AT7 6AU6 6AU6 6AU6 6AU6 6AL5 6BA6 6AU6 6AL5 6AV6 6K6GT 6C4 6SN7GT 6C4 6S4 6SN7GT 6BQ6GT 6W4GT 1X2 5U4G 19QP4

• Main principle
• Superhet with RF-stage

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: 219-8A Ch= 11A2 - Trav-Ler Karenola Radio &

• Shape
• Console, Lowboy (legs < 50 %).

• Notes

• Trav-Ler model 219-8A is a 20” b/w TV with US standard VHF tuner channels 2 thru 13. Equipped with chassis 11A2, VHF tuner TV-TA-2 and picture tube 19QP4.



• Literature/Schematics (1)

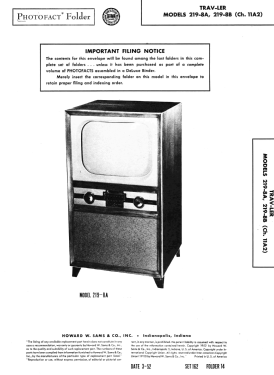

• Photofact Folder, Howard W. SAMS (Set 162, folder 14, dated 3-52)

• Author
• Model page created by Dirk Taekels. See "Data change" for further contributors.
