- Country
- United States of America (USA)
- Manufacturer / Brand
- Trav-Ler Karenola Radio & Television Corp.(Travler); Chicago
- Year
- 1938/1939
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 63484
Scanned from the Trav-Ler Folder for 1939.
Scanned from the Trav-Ler Folder for 1939.

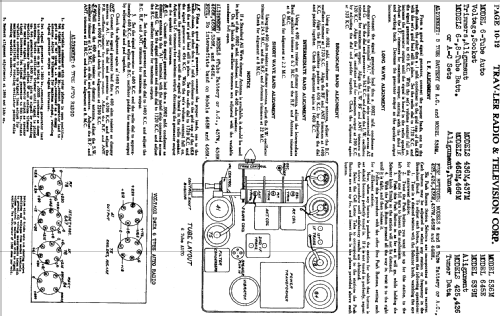

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 456 kHz
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast and Short Wave (SW).
- Power type and voltage
- Alternating Current supply (AC) / 115 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 5 inch = 12.7 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: 465-M - Trav-Ler Karenola Radio &
- Shape
- Tablemodel with Push Buttons.
- Dimensions (WHD)
- 14 x 8.5 x 7.5 inch / 356 x 216 x 191 mm
- Notes
-
Push-button tuner. Tuning Range: 25000-7200 and 1720-540 kc. See also the Trav-Ler Model 466-M for AC-DC operation.
- Price in first year of sale
- 29.95 $
- External source of data
- Ernst Erb
- Circuit diagram reference
- Rider's Perpetual, Volume 10 = 1939 and before
- Literature/Schematics (3)
- -- Original prospect or advert (The Trav-Ler Folder for 1939.)
