• Country
• United States of America (USA)

• Manufacturer / Brand
• Trav-Ler Karenola Radio & Television Corp.(Travler); Chicago

• Year
• 1946

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 121315

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 12SK7 12SA7 12SK7 12SQ7 35L6 35Z5

• Main principle
• Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• AC/DC-set / 110-125 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4.56 inch = 11.6 cm

• Material
• Wooden case

• from Radiomuseum.org

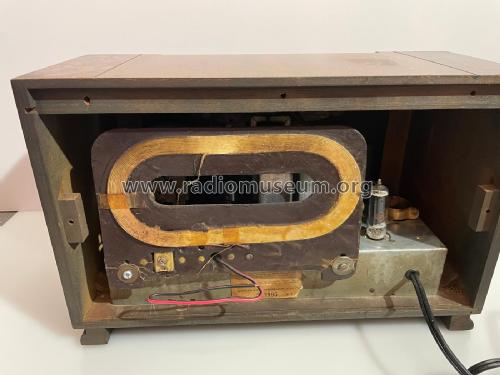

• Model: 5008 Ch= 104 SD-9 - Trav-Ler Karenola Radio &

• Shape
• Tablemodel, with any shape - general.

• Notes
• Two-tone wood. Sams photofact features the Trav-Ler Radio models 5007, 5008 and 5009 as the same schematic.

• Source of data
• Collector's Guide to Antique Radios (7th Edition)

• Circuit diagram reference
• Rider's Perpetual, Volume 15 = 1947 and before

• Literature/Schematics (1)

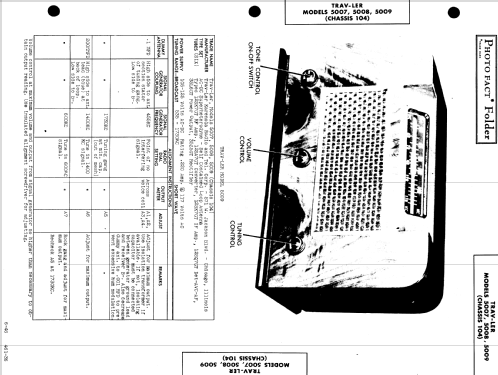

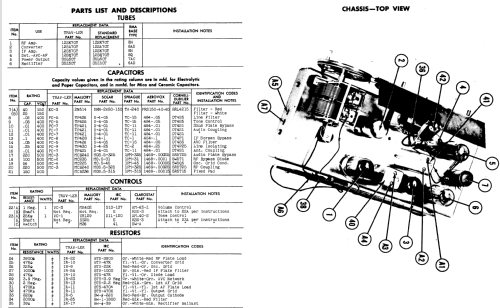

• Photofact Folder, Howard W. SAMS (Set 1 folder 461-36 date 6-46)

• Author
• Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.
