- Country
- United States of America (USA)
- Manufacturer / Brand
- Trav-Ler Karenola Radio & Television Corp.(Travler); Chicago
- Year
- 1947 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 18965
Beitman
Beitman
Copy gen. von Ben Martin Radio Attic

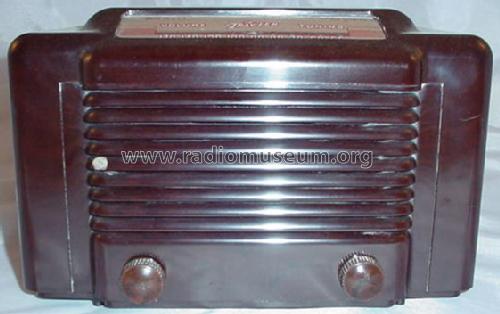

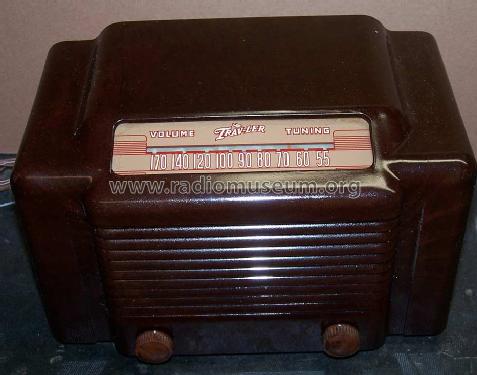

Picture courtesy of Carl Spoonamore
Picture courtesy of Carl Spoonamore
Picture courtesy of Carl Spoonamore
Picture courtesy of Carl Spoonamore
Picture courtesy of Carl Spoonamore
Sams Photofact Folders
Advertise from 1951
Inside empty cabinet

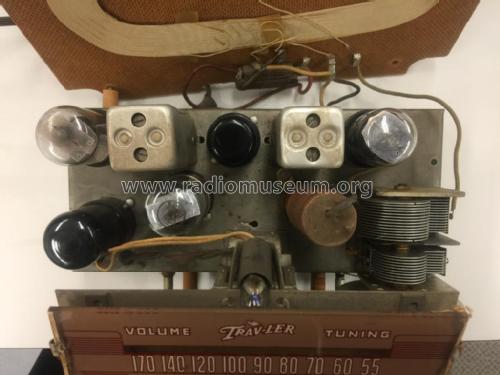

Chassis inside top view
Chassis inside front view

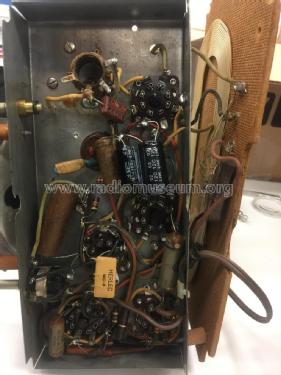

Chassis Bottom View

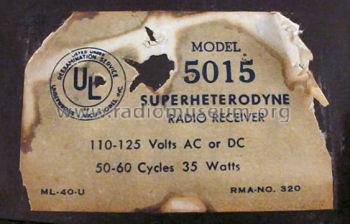

RECONSTRUCTED LABEL
RECONSTRUCTED LABEL
RECONSTRUCTED LABEL

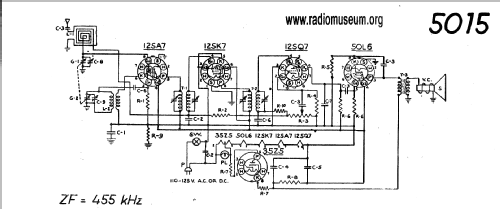

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- AC/DC-set / 115-125 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: 5015 - Trav-Ler Karenola Radio &
- Shape
- Tablemodel without push buttons, Mantel/Midget/Compact up to 14
- Dimensions (WHD)
- 10 x 6.625 x 6 inch / 254 x 168 x 152 mm
- Price in first year of sale
- 185.00 SFR
- External source of data
- E. Erb 3-907007-36-0
- Circuit diagram reference
- Die «Thali Schemasammlung» führt das Modell.
- Mentioned in
- Beitman Radio Diagrams, Vol. 10, 1950
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Date 3-48, Set 36, Folder 25)
