- Country
- United States of America (USA)
- Manufacturer / Brand
- Trav-Ler Karenola Radio & Television Corp.(Travler); Chicago
- Year
- 1947
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 18968
Beitman
Sams Photofact Folders
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- AC/DC-set / 110-250 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4.5 inch = 11.4 cm
- Material
- Bakelite case
- from Radiomuseum.org

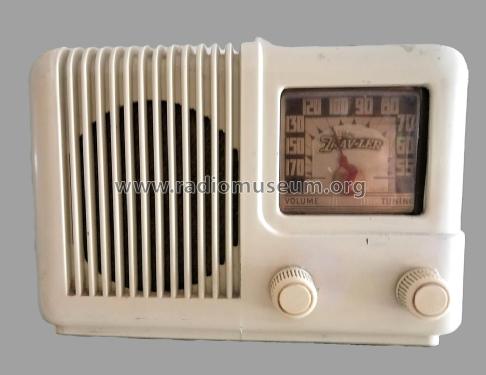

- Model: 5051 - Trav-Ler Karenola Radio &
- Shape
- Tablemodel without push buttons, Mantel/Midget/Compact up to 14
- Notes
-
Stein shows a different cabinet for model 5051 which is uncertain.
- Price in first year of sale
- 165.00 SFR
- External source of data
- E. Erb 3-907007-36-0
- Source of data
- Beitman Radio Diagrams, Vol. 08, 1948
- Circuit diagram reference
- Die «Thali Schemasammlung» führt das Modell.
- Mentioned in
- Rider's Perpetual, Volume 17 = covering 1947
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Date 1-48, Set 32, Folder 482-26)
- Literature/Schematics (2)
- Table Top Radios Vol. 1 Stein 98 (p. 159)
