• Country
• United States of America (USA)

• Manufacturer / Brand
• Trav-Ler Karenola Radio & Television Corp.(Travler); Chicago

• Year
• 1950 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 63513

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 12SA7 12SK7 12SQ7 50L6 35Z5

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• AC/DC-set / 117V = 110 -125 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4.5 inch = 11.4 cm

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: 5060 - Trav-Ler Karenola Radio &

• Shape
• Tablemodel, with any shape - general.

• Notes

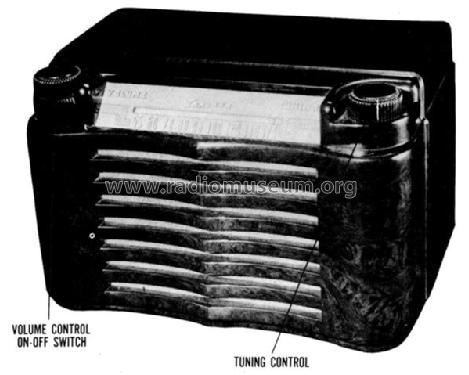

• The Trav-Ler Model 5060 is an AC/DC Operated AM Superheterodyne Receiver with Loop Antenna.

• External source of data
• Ernst Erb

• Source of data
• The Radio Collector's Directory and Price Guide 1921 - 1965

• Circuit diagram reference
• Rider's Perpetual, Volume 21, Copyright 1950

• Mentioned in
• Collector's Guide to Antique Radios 4. Edition (Beitman Radio Diagrams 1951)

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Date 12-50, Set 116, Folder 11)

• Literature/Schematics (2)
• Table Top Radios Vol. 1 Stein 98 (page 160.)
