517-106 Ch= 520BD5
Trav-Ler Karenola Radio & Television Corp.(Travler); Chicago
- Country
- United States of America (USA)
- Manufacturer / Brand
- Trav-Ler Karenola Radio & Television Corp.(Travler); Chicago
- Year
- 1956 ?
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 277087

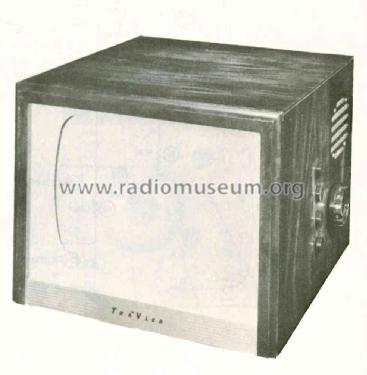

Picture from service manual.
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 13
- Main principle
- Superhet with RF-stage
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Alternating Current supply (AC) / 60 cycles, 110-120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: 517-106 Ch= 520BD5 - Trav-Ler Karenola Radio &
- Shape
- Tablemodel, with any shape - general.
- Notes
-
The TRAV-LER model 517-106 is a 17" b/w TV with US standard VHF Tuner channels 2 thru 13, equipped with VHF-tuner TA-25, chassis 520BD5 and picture tube 17HP4.
