- Country
- United States of America (USA)
- Manufacturer / Brand
- Trav-Ler Karenola Radio & Television Corp.(Travler); Chicago
- Year
- 1961 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 173645
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- AC/DC-set / 110 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org

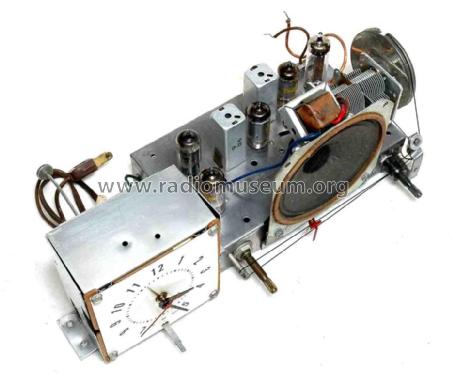

- Model: 63C301 - Trav-Ler Karenola Radio &
- Shape
- Tablemodel with Clock ((Alarm-) Clock Radio).
- Dimensions (WHD)
- 330 x 145 x 170 mm / 13 x 5.7 x 6.7 inch
- Notes
- I personally checked the equipment itself and its scheme is the same as that cited in volume Beitman R21, model 60C300. The only difference is that this has no socket outlet controlled by the clock. So the scheme I uploaded is a copy of the scheme to 60C301, modified in that one detail.
- Source of data
- - - Data from my own collection
- Circuit diagram reference
- Beitman Radio Diagrams Vol. 21, 1961
- Literature/Schematics (1)
- Beitman Radio Diagrams, Vol. 21, 1961
- Author
- Model page created by Jose Casas-Avalos. See "Data change" for further contributors.
