721-R400 Ch= 632-26
Trav-Ler Karenola Radio & Television Corp.(Travler); Chicago
- Country
- United States of America (USA)
- Manufacturer / Brand
- Trav-Ler Karenola Radio & Television Corp.(Travler); Chicago
- Year
- 1956 ?
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 269967

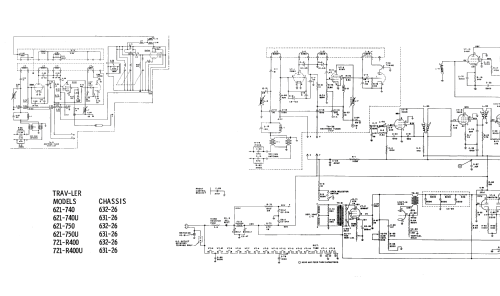

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 16
- Valves / Tubes
- 2BN4 5CG8 3AU6 3AU6 6AW8 6AW8 3AU6 3DT6 12L6GT 6SN7GTB 12W6GT 6SN7GTB 25CD6 12AX4GTA 1B3GT 21AUP4A
- Main principle
- Superhet with RF-stage
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: 721-R400 Ch= 632-26 - Trav-Ler Karenola Radio &
- Shape
- Console, Lowboy (legs < 50 %).
- Notes
-
The TRAV-LER model 721-R400 is a b/w TV with US standard VHF Tuner channels 2 thru 13. Equipped with chassis 632-26 and VHF tuner TA-32.
- Literature/Schematics (1)

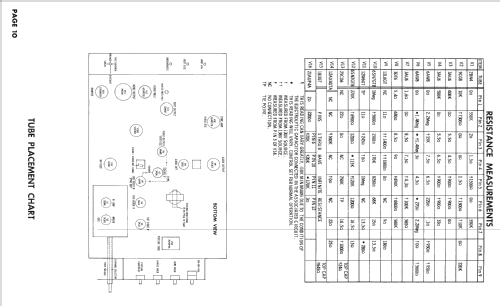

- Photofact Folder, Howard W. SAMS (Set 347 Folder 18-S Date 2-57)
- Literature/Schematics (2)
- Photofact Folder, Howard W. SAMS (Set 384 Folder 4 date 1-58)
- Author
- Model page created by Dirk Taekels. See "Data change" for further contributors.
