721-T661U Ch= 743-38
Trav-Ler Karenola Radio & Television Corp.(Travler); Chicago
- Country
- United States of America (USA)
- Manufacturer / Brand
- Trav-Ler Karenola Radio & Television Corp.(Travler); Chicago
- Year
- 1958
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 185447
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 17
- Valves / Tubes
- 21CBP4A
- Main principle
- Superhet with RF-stage
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Alternating Current supply (AC) / 110 - 120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- from Radiomuseum.org
- Model: 721-T661U Ch= 743-38 - Trav-Ler Karenola Radio &
- Notes
- 21" b/w TV with US standard VHF Tuner, Channels 2 thru 13, 14 thru 83 UHF.
- Literature/Schematics (1)

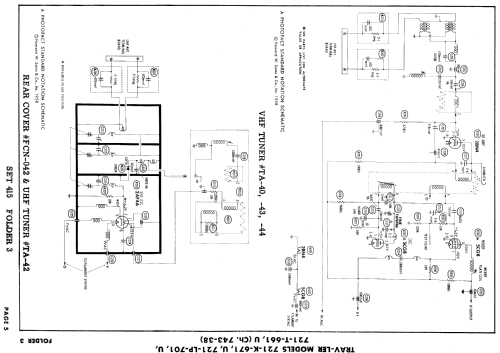

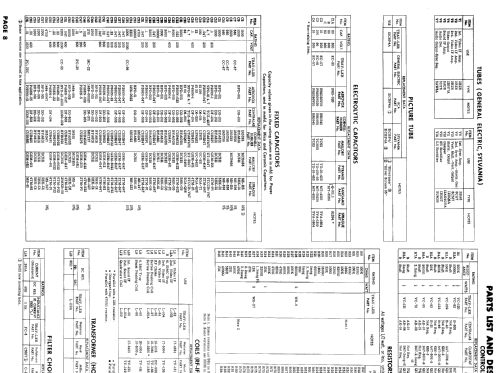

- Photofact Folder, Howard W. SAMS (Date 10-58, Set 415, Folder 3)
- Author
- Model page created by Egon Penker. See "Data change" for further contributors.
