- Country
- United States of America (USA)
- Manufacturer / Brand
- Trav-Ler Karenola Radio & Television Corp.(Travler); Chicago
- Year
- 1951 ?
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 350201

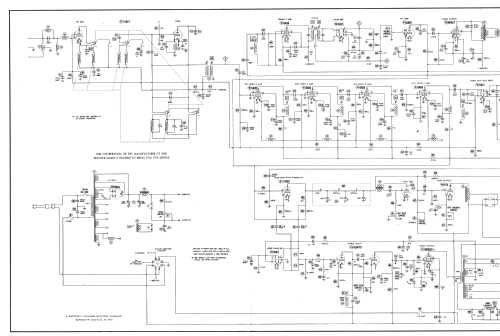

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 21
- Valves / Tubes
- 12AT7 6AU6 6AU6 6AU6 6AU6 6AL5 6BA6 12AU7 6AU6 6AL5 6AV6 6K6GT 6C4 6S4 6AL5 6SN7GT 6BQ6GT or 6CD6G 6W4GT 1X2A or 1X2 5U4G 16RP4
- Main principle
- Superhet with RF-stage
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Material
- Wooden case
- from Radiomuseum.org
- Model: 75A50-1 - Trav-Ler Karenola Radio &
- Shape
- Console, Lowboy (legs < 50 %).
- Notes
-
Trav-Ler model 75A50-1 is a 16” b/w TV with US standard VHF tuner channels 2 thru 13.
Equipped with chassis VHF tuner TV-TA-3 and picture tube 16RP4.
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Set 146, folder 11, dated 9-51)
- Author
- Model page created by Dirk Taekels. See "Data change" for further contributors.
