- Country
- United States of America (USA)
- Manufacturer / Brand
- Trav-Ler Karenola Radio & Television Corp.(Travler); Chicago
- Year
- 1958
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 84662
Sams Photofact Folders reference picture.

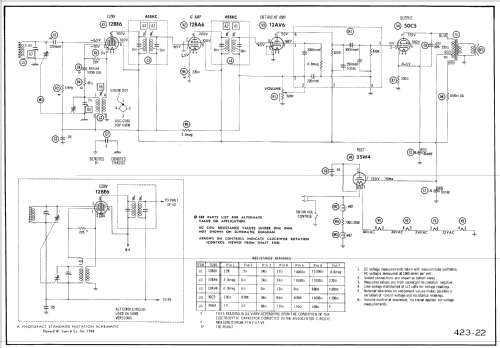

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- AC/DC-set / 110 - 120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: T210 Ch= 236 - Trav-Ler Karenola Radio &
- Shape
- Tablemodel, with any shape - general.
- Notes
- 4" x 6" PM elliptical speaker.
- Circuit diagram reference
- Beitman Radio Diagrams Vol. 18, 1958
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Date 12-58, Set 423, Folder 22)
- Author
- Model page created by Egon Penker. See "Data change" for further contributors.
