• Country
• United States of America (USA)

• Manufacturer / Brand
• Trav-Ler Karenola Radio & Television Corp.(Travler); Chicago

• Year
• 1960

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 143904

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 4

• Semiconductors
• 2N403 2N403 2N60 2N60

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Rec.Player+Audio.Amp+LS

• Power type and voltage
• Dry Batteries / 4 × 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org
• Model: TP-500 - Trav-Ler Karenola Radio &

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 15.75 x 9.25 x 9.5 inch / 400 x 235 x 241 mm

• Notes
• Trav-ler TP-500 battery operated portable record player. 1-speed manual operation, monaural reproduction, dual sapphire. Transistorized amplifier.

  Oval speaker 4" × 5". Cabinet: wood.

• Net weight (2.2 lb = 1 kg)
• 7 lb 0 oz (7 lb) / 3.178 kg

• Price in first year of sale
• 30.00 $

• Literature/Schematics (1)

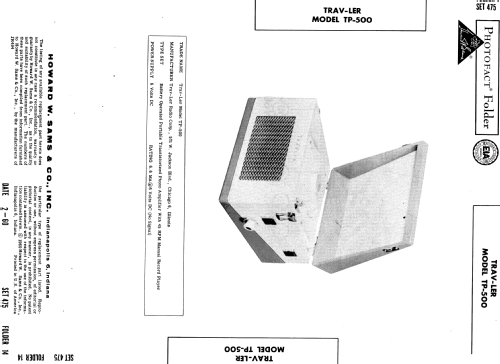

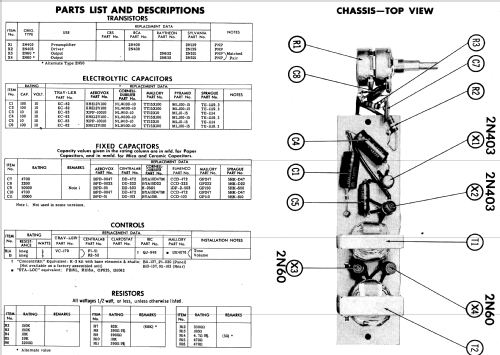

• Photofact Folder, Howard W. SAMS (Set 475 folder14 date 2-60)

• Literature/Schematics (2)
• Billboard, Sep. 19, 1960

• Author
• Model page created by Peter Hoddow. See "Data change" for further contributors.
