• Country
• United States of America (USA)

• Manufacturer / Brand
• Trav-Ler Karenola Radio & Television Corp.(Travler); Chicago

• Year
• 1959 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 157490

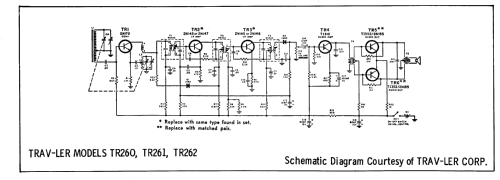

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 6

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Dry Batteries / 9 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• from Radiomuseum.org
• Model: TR260 - Trav-Ler Karenola Radio &

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Date 4-59, Set 438, Servicer)

• Author
• Model page created by Egon Penker. See "Data change" for further contributors.
