6 All Transistor Power-Mite TR-280
Trav-Ler Karenola Radio & Television Corp.(Travler); Chicago
- Country
- United States of America (USA)
- Manufacturer / Brand
- Trav-Ler Karenola Radio & Television Corp.(Travler); Chicago
- Year
- 1958
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 169819
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 5
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 1 AF stage(s)
- Tuned circuits
- 5 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Dry Batteries / 1 x 9 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 2.5 inch = 6.4 cm
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: 6 All Transistor Power-Mite TR-280 - Trav-Ler Karenola Radio &
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Notes
-
The Trav-Ler Radio Model TR-280 is a Battery operated vertical shirtpocket transistor.
Similar to the models reported under Sonora TR-281-B.
- Mentioned in
- Collector's Guide To TrR1 Bunis trans.94 (1996, page 285)
- Literature/Schematics (1)

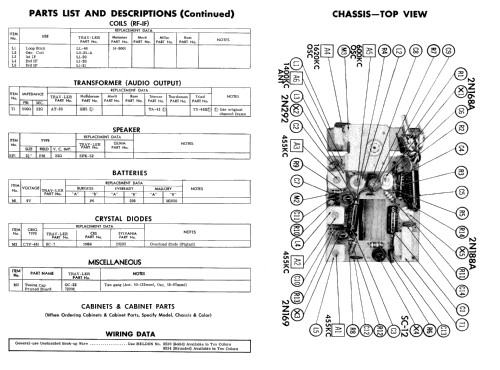

- Photofact Folder, Howard W. SAMS (Date 12-58, Set 425, Folder 15)
- Author
- Model page created by Egon Penker. See "Data change" for further contributors.
