X-1770, U, 1788, U, 1790, U Ch= 1150-19, 1156-39
Trav-Ler Karenola Radio & Television Corp.(Travler); Chicago
- Country
- United States of America (USA)
- Manufacturer / Brand
- Trav-Ler Karenola Radio & Television Corp.(Travler); Chicago
- Year
- 1959
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 157527
Sams Photofact Folders
Sams Photofact Folders

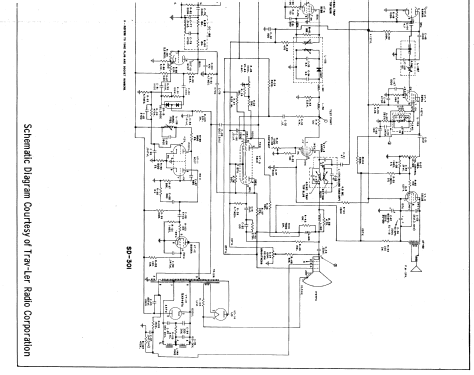

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 16
- Valves / Tubes
- Main principle
- Superheterodyne (common)
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Alternating Current supply (AC) / 110 - 120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: X-1770, U, 1788, U, 1790, U Ch= 1150-19, 1156-39 - Trav-Ler Karenola Radio &
- Shape
- Tablemodel, with any shape - general.
- Notes

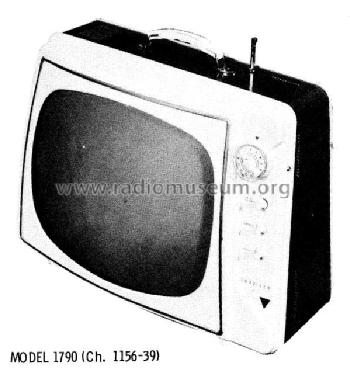

- 17" b/w Television Receiver, Picture tube: 17DTP4, Sufffix "U" stands for factory equipped with continuous UHF tuner, tube quantity UHF: 17.
Tuning Range: TV - Channels 2 thru 13 VHF, 14 thru 84 UHF.
- Literature/Schematics (1)

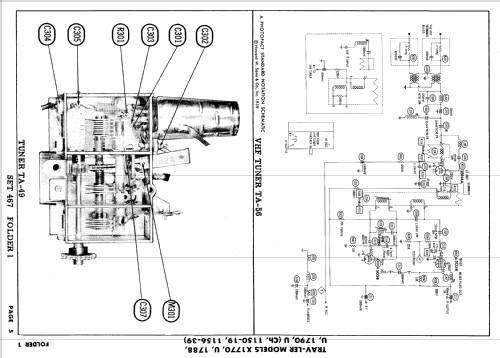

- Photofact Folder, Howard W. SAMS (Date 12-59, Set 467, Folder 1)
