Tuner Regenerative Type Type A
Trego Radio Manuf. Co.; Kansas City, Missouri
- Country
- United States of America (USA)
- Manufacturer / Brand
- Trego Radio Manuf. Co.; Kansas City, Missouri
- Year
- 1922/1923
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 237593
-
- Brand: Tregodyne
- Number of Tubes
- 1
- Valves / Tubes
- WD11
- Main principle
- TRF with regeneration
- Tuned circuits
- 1 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Dry Batteries
- Loudspeaker
- - For headphones or amp.
- Material
- Wooden case
- from Radiomuseum.org
- Model: Tuner Regenerative Type Type A - Trego Radio Manuf. Co.; Kansas
- Shape
- Tablemodel, Box - most often with Lid (NOT slant panel).
- Dimensions (WHD)
- 11 x 8 x 9 inch / 279 x 203 x 229 mm
- Notes
-
Tri-City Electric Supply was supplying regenerative radios to the Trego Manufacturing Company under it's Armstrong Regenerative License.

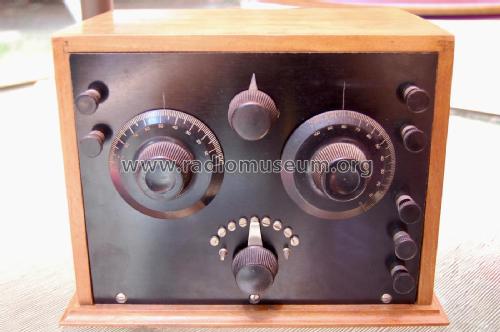

This is the Trego Tuner, Regenerative Type, Type A equipped with a tube socket to accomadate the WD-11 dry cell tube.
- Price in first year of sale
- 25.31 USD
- Mentioned in
- February 1923 Trego Manufacturing Company Brochure
- Author
- Model page created by Alan Larsen. See "Data change" for further contributors.
