• Country
• Italy

• Manufacturer / Brand
• Trevi S.p.A.; Rimini

• Year
• 1980 ??

• Category
• Car Radio, perhaps also + sound player/recorder

• Radiomuseum.org ID
• 314693

• Number of Transistors
• 5

• Semiconductors
• 2SC941 2SC380 2SC380 2SC380 unknown_tr KIA7157 KIA7130 LA3161

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Storage Battery for all (e.g. for car radios and amateur radios) / 13,8 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 14 W (max.)

• Material
• Metal case

• from Radiomuseum.org

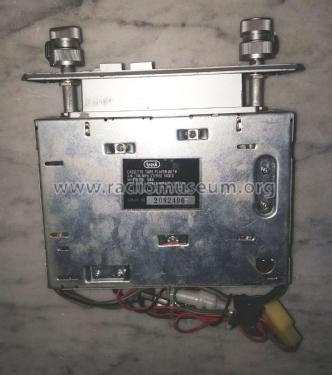

• Model: Cassette Tape Player with AM/FM MPX Stereo Radio 580 - Trevi S.p.A.; Rimini

• Shape
• Chassis only or for «building in»

• Dimensions (WHD)
• 170 x 50 x 180 mm / 6.7 x 2 x 7.1 inch

• Notes

• Sintonia ad induttori variabili.

  Riproduttore cassette con autostop.

  Potenza di uscita 2 x 7 W.

• Net weight (2.2 lb = 1 kg)
• 1.1 kg / 2 lb 6.8 oz (2.423 lb)

• Author
• Model page created by Pier Antonio Aluffi. See "Data change" for further contributors.
