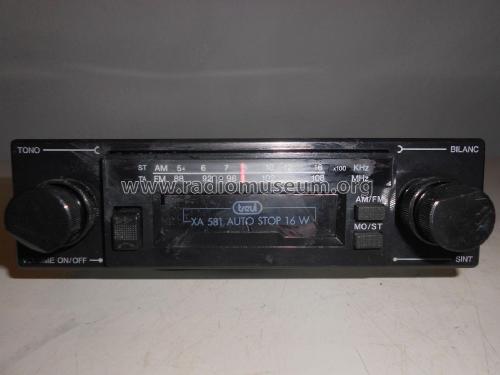

Radio Riproduttore Stereo Autostop XA 581

Trevi S.p.A.; Rimini

Data
Forum
Pictures
Collections

  • Year
  • 1980 ??
  • Category
  • Car Radio, perhaps also + sound player/recorder
  • Radiomuseum.org ID
  • 297693

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast (BC) and FM or UHF.
  • Details
  • Cassette-Recorder or -Player
  • Power type and voltage
  • Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Power out
  • 16 W (unknown quality)
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Radio Riproduttore Stereo Autostop XA 581 - Trevi S.p.A.; Rimini
  • Shape
  • Chassis only or for «building in»
  • Dimensions (WHD)
  • 170 x 50 x 170 mm / 6.7 x 2 x 6.7 inch
  • Notes

  • Controllo volume/tono/bilanciamento - commutatore AM/FM - commutatore mono/stereo - tasto play/ff.ww - autostop - taratura testina - potenza d'uscita: 8+8 watt - connessione per antenna elettrica - frequency range: AM 540/1602 Khz - FM 88/108 Mhz.

    Made in Korea

  • Net weight (2.2 lb = 1 kg)
  • 1.1 kg / 2 lb 6.8 oz (2.423 lb)
  • Author
  • Model page created by Edoardo Sigismondo. See "Data change" for further contributors.
