The Aladdin Low Loss Receiver Model 3

Tri-City Radio Supply Co. (Tresco); Davenport, Iowa

Data

Forum

Pictures

Collections

Country
United States of America (USA)

Manufacturer / Brand
Tri-City Radio Supply Co. (Tresco); Davenport, Iowa

Year
1924 ?

Category
Broadcast Receiver - or past WW2 Tuner

Radiomuseum.org ID
249919

Schematics

The Aladdin Low Loss Receiver Model 3; Tri-City Radio (ID = 1628731) Radio — Tri-City Radio The Aladdin Low Loss Receiver Model 3 (1)
The Aladdin Low Loss Receiver Model 3

The Aladdin Low Loss Receiver Model 3; Tri-City Radio (ID = 1628732) Radio — Tri-City Radio The Aladdin Low Loss Receiver Model 3 (1)
The Aladdin Low Loss Receiver Model 3

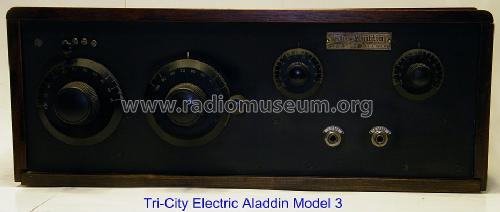

The Aladdin Low Loss Receiver Model 3; Tri-City Radio (ID = 1628733) Radio — Tri-City Radio The Aladdin Low Loss Receiver Model 3 (1)
The Aladdin Low Loss Receiver Model 3

The Aladdin Low Loss Receiver Model 3; Tri-City Radio (ID = 1628734) Radio — Tri-City Radio The Aladdin Low Loss Receiver Model 3 (1)
The Aladdin Low Loss Receiver Model 3

The Aladdin Low Loss Receiver Model 3; Tri-City Radio (ID = 1628735) Radio — Tri-City Radio The Aladdin Low Loss Receiver Model 3 (1)
The Aladdin Low Loss Receiver Model 3

The Aladdin Low Loss Receiver Model 3; Tri-City Radio (ID = 1628736) Radio — Tri-City Radio The Aladdin Low Loss Receiver Model 3 (1)
The Aladdin Low Loss Receiver Model 3

The Aladdin Low Loss Receiver Model 3; Tri-City Radio (ID = 1628737) Radio — Tri-City Radio The Aladdin Low Loss Receiver Model 3 (1)
The Aladdin Low Loss Receiver Model 3

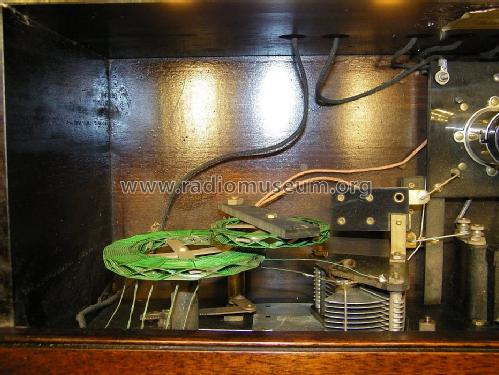

The Aladdin Low Loss Receiver Model 3; Tri-City Radio (ID = 1628738) Radio — Tri-City Radio The Aladdin Low Loss Receiver Model 3 (1)

The Aladdin Low Loss Receiver Model 3; Tri-City Radio (ID = 1628739) Radio — Tri-City Radio The Aladdin Low Loss Receiver Model 3 (1)

The Aladdin Low Loss Receiver Model 3; Tri-City Radio (ID = 1628740) Radio — Tri-City Radio The Aladdin Low Loss Receiver Model 3 (1)
The Aladdin Low Loss Receiver Model 3

The Aladdin Low Loss Receiver Model 3; Tri-City Radio (ID = 1628741) Radio — Tri-City Radio The Aladdin Low Loss Receiver Model 3 (1)
The Aladdin Low Loss Receiver Model 3

The Aladdin Low Loss Receiver Model 3; Tri-City Radio (ID = 1628742) Radio — Tri-City Radio The Aladdin Low Loss Receiver Model 3 (1)
The Aladdin Low Loss Receiver Model 3

Technical Specifications

Number of Tubes
3

Valves / Tubes
UV201A UV201A UV201A

Main principle
TRF with regeneration; 2 AF stage(s)

Tuned circuits
1 AM circuit(s)

Wave bands
Broadcast only (MW).

Power type and voltage
Storage and/or dry batteries

Loudspeaker
- This model requires external speaker(s).

Material
Wooden case

from Radiomuseum.org
Model: The Aladdin Low Loss Receiver Model 3 - Tri-City Radio Supply Co.

Shape
Tablemodel, Box - most often with Lid (NOT slant panel).

Dimensions (WHD)
18.5 x 7 x 8.5 inch / 470 x 178 x 216 mm

Notes
Made by Tri-City Electrical Supply and sold under the Aladdin brand name. This was a three-tube regenerative chassis with two stage of audio amplification. This chassis was also used in a Marshall branded radio as seen here Marshall 3

Author
Model page created by Alan Larsen. See "Data change" for further contributors.
