• Country
• United States of America (USA)

• Manufacturer / Brand
• Tri-City Radio Supply Co. (Tresco); Davenport, Iowa

• Year
• 1922

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 106327

• Number of Tubes
• 3

• Valves / Tubes

• Main principle
• TRF with regeneration

• Tuned circuits
• 1 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Storage and/or dry batteries

• Loudspeaker
• Horn

• Material
• Wooden case

• from Radiomuseum.org
• Model: Tresco Sectional Universal - Tri-City Radio Supply Co.

• Shape
• Tablemodel, Box - most often with Lid (NOT slant panel).

• Dimensions (WHD)
• 50 x 14 x 10 inch / 1270 x 356 x 254 mm

• Notes

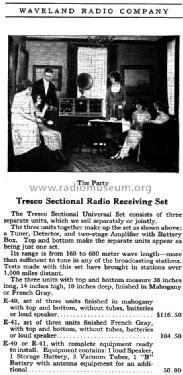

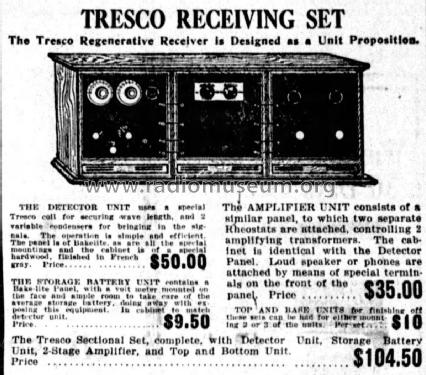

• 160-600 m. Consists of Tuner/Detector, Storage battery cabinet, Two step amplifier, Vocarola cabinet(hiding the Horn speaker).
  Price without tubes, batteries, Vocarola or headphones.

• Price in first year of sale
• 112.00 $

• Mentioned in
• Radio Manufacturers of the 1920's, Vol. 3

• Author
• Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.

• Other Models

• Here you find 80 models, 53 with images and 2 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Tri-City Radio Supply Co. (Tresco); Davenport, Iowa
