• Country
• Great Britain (UK)

• Manufacturer / Brand
• Tri-ang - Minimodels Limited; Havant, Hants

• Year
• 1962

• Category
• Kit (Parts plus instruction) or building instructions only

• Radiomuseum.org ID
• 304055

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 1

• Semiconductors

• Main principle
• TRF with regeneration

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Dry Batteries / 9 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 2.25 inch = 5.7 cm

• Material
• Various materials

• from Radiomuseum.org
• Model: Tri-onic Electronic Conversion Kit A/B - Tri-ang - Minimodels Limited;

• Notes

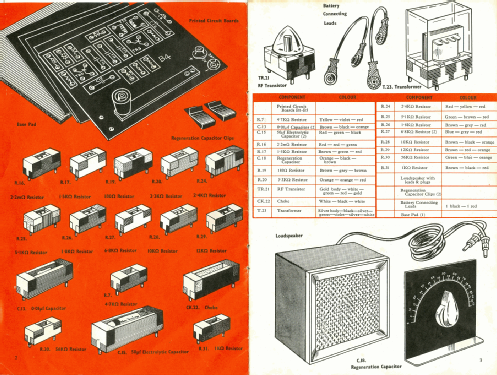

• Expansion kit A/B, this kit had to be used in conjunction with Kit A;

  Projects include;
  2 transistor receiver with regeneration.

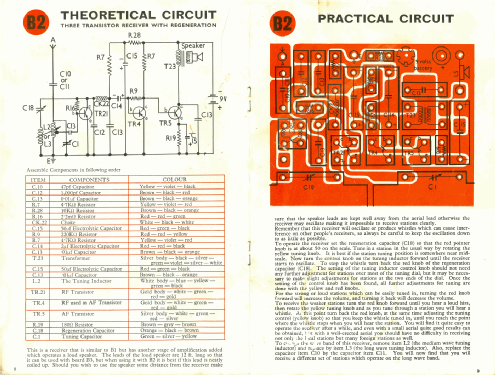

  3 Transister receiver with regeneration and loud speaker output.
  2 Transistor microphone amplifier.
  2 Transistor Morse practice oscillator.
  2 Transistor electronic organ.

• Mentioned in
• Radio! Radio! (p. 200)

• Author
• Model page created by Mike Edwards † 25.10.21. See "Data change" for further contributors.
