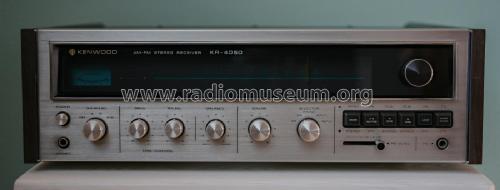

AM-FM Stereo Receiver KR-4050

Kenwood, Trio-Kenwood Inc.; Komagane

Data
Forum
Pictures
Collections

  • Year
  • 1975 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 210484
    • alternative name: Trio Corp.
    • Brand: Jennen

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Superheterodyne (common); ZF/IF ? / 10700 kHz
  • Wave bands
  • Broadcast (BC) and FM or UHF.
  • Power type and voltage
  • Alternating Current supply (AC) / 120; 220 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Power out
  • 40 W (undistorted)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: AM-FM Stereo Receiver KR-4050 - Kenwood, Trio-Kenwood Inc.;
  • Shape
  • Book-shelf unit.
  • Dimensions (WHD)
  • 450 x 135 x 346 mm / 17.7 x 5.3 x 13.6 inch
  • Notes

  • AM/FM Stereo Receiver, Bass-, Treble-Control, High-Filter, Loudness, Tape Monitor, Signal-Meter.

    Ausgangsleistung: 2 x 20 W/sin (RMS) an 8 Ω

  • Net weight (2.2 lb = 1 kg)
  • 10.2 kg / 22 lb 7.5 oz (22.467 lb)
  • Mentioned in
  • Originalprospekt deutsch
  • Author
  • Model page created by Franz Scharner. See "Data change" for further contributors.
