• Country
• Japan

• Manufacturer / Brand
• Kenwood, Trio-Kenwood Inc.; Komagane

• Year
• 1996

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 222884

• • alternative name: Trio Corp.
  • Brand: Jennen

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• PLL, Phase-locked loop

• Wave bands
• Broadcast (BC) and FM or UHF.

• Details
• Hi-Fi equipment

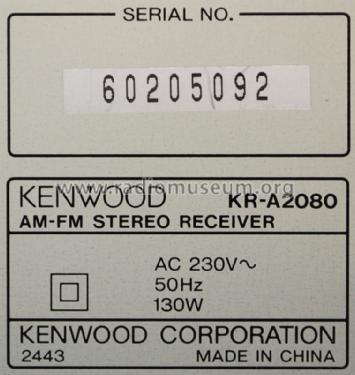

• Power type and voltage
• Alternating Current supply (AC) / 230 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 100 W (undistorted)

• Material
• Metal case

• from Radiomuseum.org

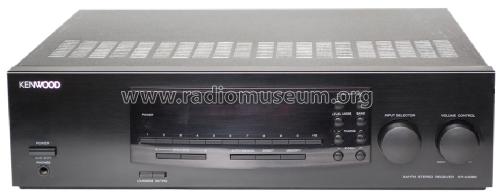

• Model: AM-FM Stereo Receiver KR-A2080 - Kenwood, Trio-Kenwood Inc.;

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 440 x 127 x 380 mm / 17.3 x 5 x 15 inch

• Notes

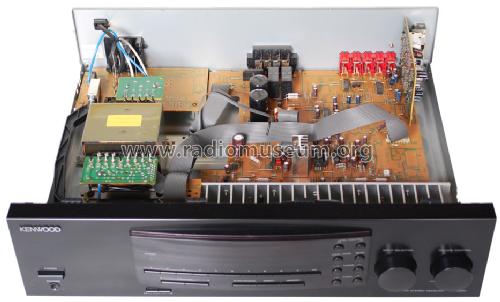

• An AM/FM stereo hi-fi receiver with a stereo tuner with RDS/EON covering MW (531-1602kHz) and FM (87.5-108MHz) and an integrated amplifier with rated output power of 2 x 50 watts into 4 ohms from 63Hz - 12,500Hz with 0.7 THD.  With discrete power amplifiers and VIG stabilized power supply. Memory for 40 VHF / MW radio stations, direct frequency input via 10-key keyboard, loudness switch, muting switch, plain text display. Pulse-coded input selector, 4 inputs (phono, CD, tape, video / AUX), wear-free electronic volume and tone controls, 2 switched AC outlets, terminals for 2 pairs of speakers and jack for headphones.

  Diskret aufgebaute Leistungsendstufen, VIG stabilisierte Stromversorgung, 40 UKW/MW Festsenderspeicher, direkte Frequenzeingabe über 10er Tastatur, Loudness- Schalter, Muting-Schalter, Schönschriftdisplay. Impulscodierter Eingangswähler, 4 Eingänge (Phono, CD, Tape, Video/AUX), verschleißfreie elektonische Lautstärke- und Klangregelung, 2 geschaltete AC-Outlets, Anschußmöglichkeit für 2 Lautsprecherpaare. 2 x 50 W Ausgangsleistung.

  Made in China

• Net weight (2.2 lb = 1 kg)
• 6.7 kg / 14 lb 12.1 oz (14.758 lb)

• Price in first year of sale
• 299.00 DM

• Literature/Schematics (1)
• - - Manufacturers Literature (Service Manual KR-A2080/A3080/A4080/A5080 dated 1996)
