Kenwood Stereo Integrated Amplifier KA-990D

Kenwood, Trio-Kenwood Inc.; Komagane

Data
Forum
Pictures
Collections

  • Year
  • 1990 ??
  • Category
  • Audio Amplifier or -mixer
  • Radiomuseum.org ID
  • 330895
    • alternative name: Trio Corp.
    • Brand: Jennen

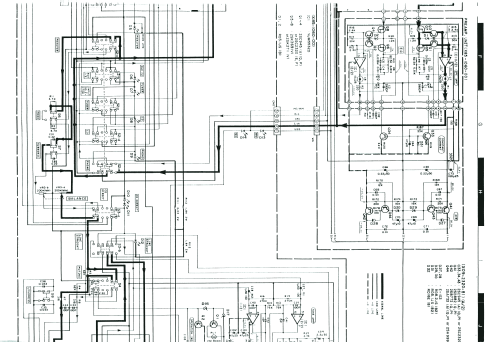

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • Hi-Fi equipment
  • Power type and voltage
  • Alternating Current supply (AC) / 120; 220; 240 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Power out
  • 280 W (max.)
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Kenwood Stereo Integrated Amplifier KA-990D - Kenwood, Trio-Kenwood Inc.;
  • Shape
  • Book-shelf unit.
  • Dimensions (WHD)
  • 440 x 158 x 420 mm / 17.3 x 6.2 x 16.5 inch
  • Notes

  • Kenwood KA990D Stereo Integrated Amplifier, max. output power 2 x 140 W into 4 Ω

    Inputs: Phono(MM), Phono(MC), Tape, Aux, Tuner

  • Net weight (2.2 lb = 1 kg)
  • 13.5 kg / 29 lb 11.8 oz (29.736 lb)
  • Literature/Schematics (1)
  • -- Original-techn. papers.
  • Author
  • Model page created by Erwin Scholle. See "Data change" for further contributors.
