AM-FM Stereo Tuner KT-313
Kenwood, Trio-Kenwood Inc.; Komagane
- Country
- Japan
- Manufacturer / Brand
- Kenwood, Trio-Kenwood Inc.; Komagane
- Year
- 1979/1980
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 148178
-
- alternative name: Trio Corp.
- Brand: Jennen

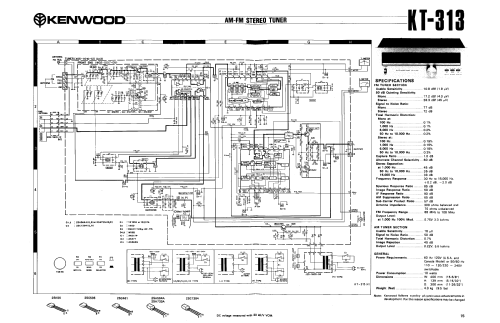

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- Semiconductors present.
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast (BC) and FM or UHF.
- Details
- Hi-Fi equipment
- Power type and voltage
- Alternating Current supply (AC) / 120; 110-120; 220-240 Volt
- Loudspeaker
- - For headphones or amp.
- Material
- Metal case
- from Radiomuseum.org
- Model: AM-FM Stereo Tuner KT-313 - Kenwood, Trio-Kenwood Inc.;
- Shape
- Book-shelf unit.
- Dimensions (WHD)
- 15.75 x 5.49 x 11.8 inch / 400 x 139 x 300 mm
- Notes
-
A hi-fi AM/FM stereo tuner with an analogue dial housed in a metal case. With Signal and Tuning meters, FM Stereo indicator, rotary Tuning control, push buttons for MPX Filter (On, Off), FM Mode (Auto/Muting, Mono) and Selector (FM, AM). On the back, terminals for AM and FM antennae, RCA phono sockets for Line Output and a ferrite rod antenna adjustment wheel.
Specification FM TUNER SECTION Frequency Range 88MHz to 108MHz Usable Sensitivity 10.8dBf (1.9µV) 50dB Quieting Sensitivity Mono 17.2dBf (4.0µV)
Stereo 38.3dBf (45µV)Signal to Noise Ratio Mono 77dB, Stereo 72dB Total Harmonic Distortion Mono at 100Hz:0.1%, 1kHz:0.1%, 6kHz:0.2%,
50Hz-10kHz:0.2%Stereo at 100Hz:0.19%, 1kHz:0.15%, 6kHz:0.18%
50Hz-10kHz:0.3%Capture Ratio 1.0dB Alt. Channel Selectivity 60dB Stereo Separation at 1kHz:45dB, 50Hz-10kHz:35dB, 15kHz:33dB Frequency Response 30Hz to 15,000Hz +0.2dB,-2.0dB Spurious Response Ratio 85dB Image Response Ratio 50dB IF Response Ratio 90dB AM Suppression Ratio 65dB Antenna Impedance 300Ω balanced, 75Ω unbalanced Output Level 1,000Hz 100% Mod. 0.75V, 3.3kΩ AM TUNER SECTION Usable Sensitivity 16µV Signal to Noise Ratio 50dB Total Harmonic Distortion 0.7% Image Rejection 45dB Output Level 0.22V, 5.6kΩ Power Requirements
U.S.A. and Canada Model 120V AC 60Hz
General Export Model 110-120/220-240V AC 50/60Hz switchablePower Consumption: 10 watts
Same as the Trio KT-3133 AM-FM Stereo Tuner. Similar to the Kenwood KT-313L LW-FM Stereo Tuner which has LW coverage instead of MW.
- Net weight (2.2 lb = 1 kg)
- 4.8 kg / 10 lb 9.2 oz (10.573 lb)
