MC-80

Kenwood, Trio-Kenwood Inc.; Komagane

Data
Forum
Pictures
Collections

  • Year
  • 1986 ?
  • Category
  • Microphone or Pick-up element
  • Radiomuseum.org ID
  • 156761
    • alternative name: Trio Corp.
    • Brand: Jennen

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 2
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Power type and voltage
  • Dry Batteries / 4 × 1.5 Volt
  • Loudspeaker
  • - For headphones or amp.
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: MC-80 - Kenwood, Trio-Kenwood Inc.;
  • Shape
  • Tablemodel, with any shape - general.
  • Dimensions (WHD)
  • 120 x 50 x 155 mm / 4.7 x 2 x 6.1 inch
  • Notes

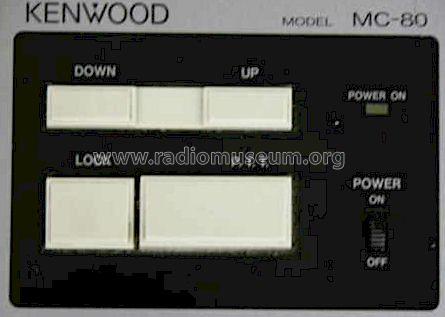

  • Omnidirectional desk electret condenser microphone MC-80.
    Gooseneck; built-in pre-amp; Impedance: 700 Ohm; Sensitivity: -40 dB ±6 dB; Frequency response: 200 Hz - 7 kHz; Up & Down tuning buttons for use with compatible Kenwood transceivers.
    For use with Kenwood-Transceivers the power supply comes from the TRX.
    Dimensions without microphone.
  • Net weight (2.2 lb = 1 kg)
  • 0.7 kg / 1 lb 8.7 oz (1.542 lb)
  • Literature/Schematics (1)

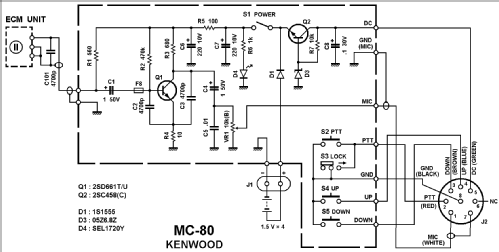

  • -- Schematic
  • Author
  • Model page created by a member from A. See "Data change" for further contributors.
