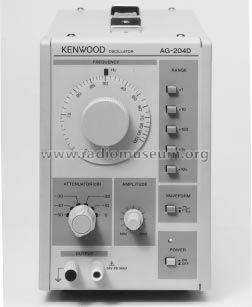

Oscillator AG-204D

Kenwood, Trio-Kenwood Inc.; Komagane

Data
Forum
Pictures
Collections

  • Year
  • 1980 ??
  • Category
  • Service- or Lab Equipment
  • Radiomuseum.org ID
  • 229488
    • alternative name: Trio Corp.
    • Brand: Jennen

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Wave bands
  • Wave Bands given in the notes.
  • Power type and voltage
  • Alternating Current supply (AC) / 100; 120; 220; 240 Volt
  • Loudspeaker
  • - For headphones or amp.
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Oscillator AG-204D - Kenwood, Trio-Kenwood Inc.;
  • Shape
  • Tablemodel, high profile (upright - NOT Cathedral nor decorative).
  • Dimensions (WHD)
  • 128 x 190 x 285 mm / 5 x 7.5 x 11.2 inch
  • Notes

  • Frequency range 10Hz ...1MHz
    1 range 10Hz to 100Hz
    10 range 100Hz to 1kHz
    100 range 1kHz to 10kHz
    1k range 10kHz to 100kHz
    10k range 100kHz to 1MHz

    Frequency accuracy 31Hz)


    Sinewave characteristics

    Output voltage 5Vrms or more (at 600½ load)
    Output voltage deviation 0.5dB (10Hz to 1MHz)

    Distortion factor

    AG-203D  400Hz to 20kHz 0.1% or less

    100Hz to 100kHz 0.3% or less
    (100Hz : at  10 range)

    50Hz to 200kHz 0.5% or less
    20Hz to 500kHz 1.0% or less
    10Hz to 1MHz 1.5% or less

    AG-204D  500Hz to 20kHz 0.02% or less
    100Hz to 100kHz 0.05% or less
    (100Hz : at 10 range,
    100kHz : at 1k range)
    50Hz to 200kHz 0.3% or less
    20Hz to 500kHz 0.5% or less
    10Hz to 1MHz 1.5% or less

    Squarewave characteristics

    Output voltage 10Vp-p (600½ load)

    Rise time 200ns max (at maximum output)
    Duty ratio Within 45:55 (at 1kHz, maximum
    output)

    External sync characteristics

    Synchronous range 1%/Vrms or more
    Maximum input voltage 15V (DC/AC peak)
    Input impedance Approx. 100k½
    Output characteristics
    Output impedance Approx. 600½
    Output attenuator 0dB, 10dB, 20dB, 30dB, 40dB, 50dB (6 steps)
    Output attenuator accuracy within 1dB


    Temperature/humidity

    for operation 0 to 40° RH85%

    Power source 100/120/220V/230V AC, 10% 50/60Hz

    Power consumption Approx. 5W

    Dimensions AG-203D : 128 (W)190 (H)239 (D) mm


    AG-204D : 128 (W)190 (H)285 (D) mm

    Weight AG-203D : Approx. 2.9kg

    AG-204D : Approx. 3.2kg

    Accessories Instruction manual (1),
    accessory cable (model: CA-48P)(1),
    power cord (1)

  • Net weight (2.2 lb = 1 kg)
  • 3.2 kg / 7 lb 0.8 oz (7.048 lb)
  • Source of data
  • - - Manufacturers Literature
  • Author
  • Model page created by a member from A. See "Data change" for further contributors.
