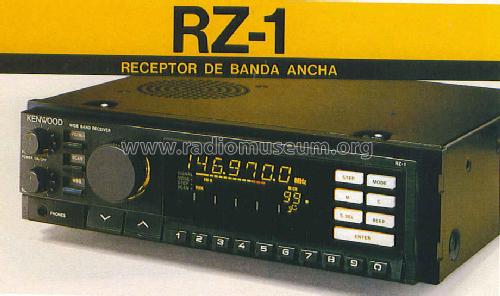

Wide Band Receiver RZ-1

Kenwood, Trio-Kenwood Inc.; Komagane

Data
Forum
Pictures
Collections

  • Year
  • 1988–1992 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 81345
    • alternative name: Trio Corp.
    • Brand: Jennen

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Superhet, double/triple conversion; ZF/IF 45750/455 kHz
  • Wave bands
  • Wave Bands given in the notes.
  • Details
  • Other Combination - see Notes
  • Power type and voltage
  • Storage and/or dry batteries / 11-16 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Power out
  • 2 W (unknown quality)
  • Material
  • Various materials
  • from Radiomuseum.org
  • Model: Wide Band Receiver RZ-1 - Kenwood, Trio-Kenwood Inc.;
  • Shape
  • Very small Portable or Pocket-Set (Handheld) < 8 inch.
  • Dimensions (WHD)
  • 180 x 50 x 158 mm / 7.1 x 2 x 6.2 inch
  • Notes
  • coverage 500 kHz - 905 MHz; AM, FM-N, FM-W, C3F/TV (NTSC TV - output);
    100 memories, scanning functions
    optional external speakers SP-41 or SP-50B
  • Net weight (2.2 lb = 1 kg)
  • 1.5 kg / 3 lb 4.9 oz (3.304 lb)
  • Author
  • Model page created by Martin Bösch. See "Data change" for further contributors.
