Stereo Power Amplifier KM-X1000

Kenwood, Trio-Kenwood Inc.; Komagane

Data
Forum
Pictures
Collections

  • Year
  • 1995
  • Category
  • Audio Amplifier or -mixer
  • Radiomuseum.org ID
  • 284173
    • alternative name: Trio Corp.
    • Brand: Jennen

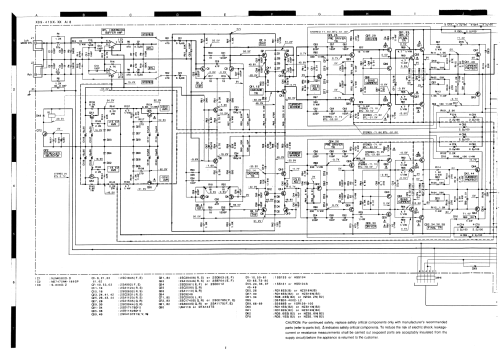

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • Hi-Fi equipment
  • Power type and voltage
  • Alternating Current supply (AC)
  • Loudspeaker
  • - This model requires external speaker(s).
  • Power out
  • 260 W (undistorted)
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Stereo Power Amplifier KM-X1000 - Kenwood, Trio-Kenwood Inc.;
  • Shape
  • Book-shelf unit.
  • Dimensions (WHD)
  • 440 x 113 x 384 mm / 17.3 x 4.4 x 15.1 inch
  • Notes

  • Trio Kenwood Stereo Power Amplifier Model KM-X1000.
    130 Watts per channel min. RMS, both channels driven at 8 ohms, from 20 - 20000Hz with no more than 0,01% THD (FTC).
    BTL Mode (Mono) - 270 Watts into 8 Ohms, 20 - 20000Hz, 0,03% THD (FTC)
    Power Consumption - 3,5A, 310 Watts




  • Net weight (2.2 lb = 1 kg)
  • 13.5 kg / 29 lb 11.8 oz (29.736 lb)
  • Price in first year of sale
  • 999.00 DM
  • Mentioned in
  • - - Manufacturers Literature (Kenwood Flyer, Service Manual)
  • Author
  • Model page created by Franz Scharner. See "Data change" for further contributors.
