- Country
- Japan
- Manufacturer / Brand
- Kenwood, Trio-Kenwood Inc.; Komagane
- Year
- 1994 ?
- Category
- Amateur TRX: Transmitter/Receiver (and Transceiver)
- Radiomuseum.org ID
- 89484
-
- alternative name: Trio Corp.
- Brand: Jennen
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Superhet, double/triple conversion
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Storage Battery for all (e.g. for car radios and amateur radios) / 13,8 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Metal case
- from Radiomuseum.org
- Model: TM-455E - Kenwood, Trio-Kenwood Inc.;
- Shape
- Miscellaneous shapes - described under notes.
- Dimensions (WHD)
- 180 x 60 x 261 mm / 7.1 x 2.4 x 10.3 inch
- Notes

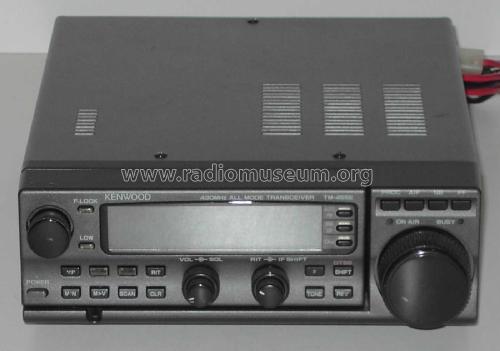

- Kenwood Mobile-UHF-Transceiver TM-455E.
Range from 430 to 440 MHz; Modes: FM, SSB, CW; 101 memories; 9k6 packet ready; detachable front panel; Pout: 35 W.
- Net weight (2.2 lb = 1 kg)
- 2.7 kg / 5 lb 15.2 oz (5.947 lb)
- Author
- Model page created by Iven Müller. See "Data change" for further contributors.
