TR-2200G

Kenwood, Trio-Kenwood Inc.; Komagane

Data
Forum
Pictures
Collections

  • Year
  • 1974–1976 ?
  • Category
  • Amateur TRX: Transmitter/Receiver (and Transceiver)
  • Radiomuseum.org ID
  • 73343
    • alternative name: Trio Corp.
    • Brand: Jennen

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 25
  • Semiconductors
  • Main principle
  • Transceiver; ZF/IF 10700/455 kHz
  • Wave bands
  • Wave Bands given in the notes.
  • Power type and voltage
  • Storage and/or dry batteries / 8×1.5 or 10×1.2 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 cm = 2 inch
  • Power out
  • 0.7 W (unknown quality)
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: TR-2200G - Kenwood, Trio-Kenwood Inc.;
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 135 x 58 x 181 mm / 5.3 x 2.3 x 7.1 inch
  • Notes

  • ICs: 3

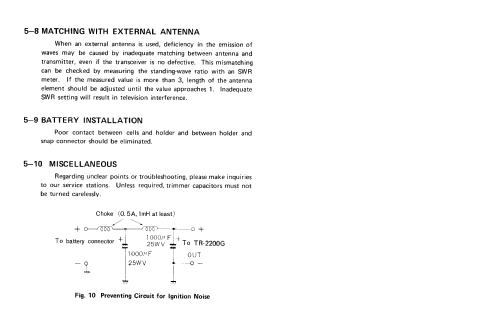

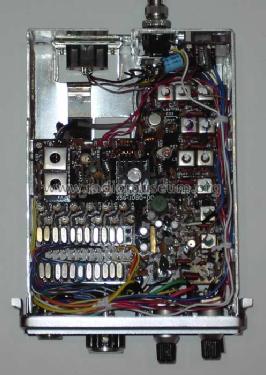

    Portable-VHF-FM-Transceiver TR-2200G. 12 xtal-channels in the range from 144 to 146 MHz; built-in telescopic antenna; external power supply (10.4-15.2 VDC) possible; Pout 1 W. Built in 1750 Hz tone burst. Early model without "G"-suffix has only six channels.

  • Net weight (2.2 lb = 1 kg)
  • 1.7 kg / 3 lb 11.9 oz (3.744 lb)
  • Price in first year of sale
  • 625.00 DM
  • Source of data
  • -- Original-techn. papers.
  • Author
  • Model page created by a member from D. See "Data change" for further contributors.
