• Country
• Japan

• Manufacturer / Brand
• Kenwood, Trio-Kenwood Inc.; Komagane

• Year
• 1982 ?

• Category
• Amateur TRX: Transmitter/Receiver (and Transceiver)

• Radiomuseum.org ID
• 89452

• • alternative name: Trio Corp.
  • Brand: Jennen

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Transceiver; ZF/IF 10695/455 kHz

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Storage Battery for all (e.g. for car radios and amateur radios) / 13,8 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Metal case

• from Radiomuseum.org
• Model: TR-9130 - Kenwood, Trio-Kenwood Inc.;

• Shape
• Miscellaneous shapes - described under notes.

• Dimensions (WHD)
• 170 x 68 x 241 mm / 6.7 x 2.7 x 9.5 inch

• Notes

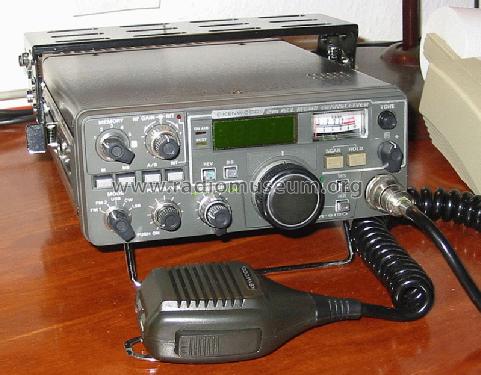

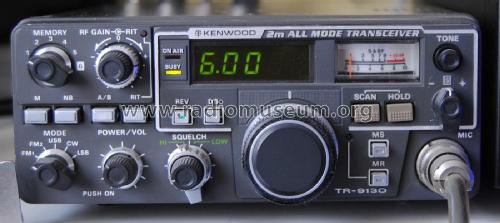

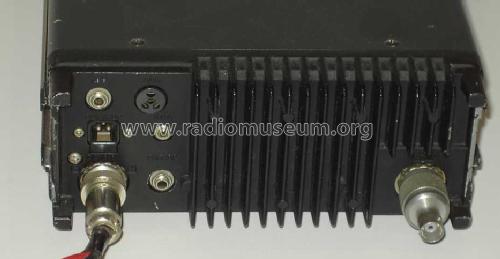

• Kenwood VHF-Mobile-Transceiver TR-9130.
  Range from 144 to 146 MHz, Modes: FM, SSB, CW; 2 VFOs; 6 memories; P_out: 25 W/5 W.

• Net weight (2.2 lb = 1 kg)
• 2.4 kg / 5 lb 4.6 oz (5.286 lb)

• Price in first year of sale
• 1,500.00 DM

• Mentioned in
• RICOFUNK-Katalog 1983

• Author
• Model page created by Iven Müller. See "Data change" for further contributors.
