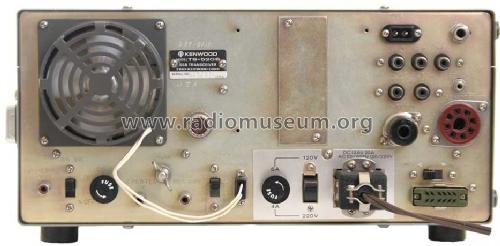

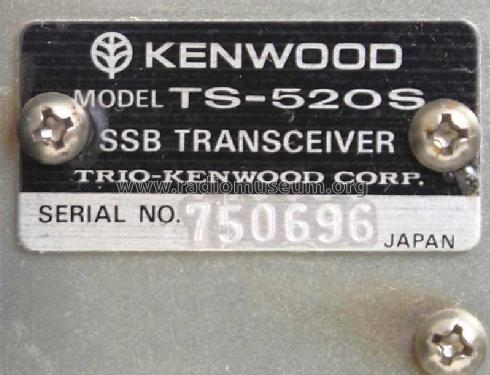

TS-520S

Kenwood, Trio-Kenwood Inc.; Komagane

Data
Forum
Pictures
Collections

  • Year
  • 1975 ??
  • Category
  • Amateur TRX: Transmitter/Receiver (and Transceiver)
  • Radiomuseum.org ID
  • 73223
    • alternative name: Trio Corp.
    • Brand: Jennen

 Technical Specifications

  • Number of Tubes
  • 3
  • Number of Transistors
  • 71
  • Semiconductors
  • Main principle
  • Superhet, double/triple conversion
  • Wave bands
  • Wave Bands given in the notes.
  • Power type and voltage
  • Alternating Current supply (AC) / 120; 220 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch
  • Power out
  • 1 W (unknown quality)
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: TS-520S - Kenwood, Trio-Kenwood Inc.;
  • Shape
  • Tablemodel with Push Buttons.
  • Dimensions (WHD)
  • 333 x 150 x 335 mm / 13.1 x 5.9 x 13.2 inch
  • Notes
  • Kenwood KW-Transceiver TS-520S.
    Sende-/Empfänger für die Amateurbänder 160 m, 80 m, 40 m, 20 m, 15 m und 10 m in SSB und CW; 15-MHz-WWV Empfang; VOX und Sprachprozessor eingebaut; mit optionalem DC-DC Wandler DS-1A ist Betrieb mit 13,8 V- möglich; Pout 100 W.
    Zusätzlicher VFO-520S und externer Lautsprecher SP-520 als Zubehör.
  • Net weight (2.2 lb = 1 kg)
  • 16 kg / 35 lb 3.9 oz (35.242 lb)
  • Source of data
  • -- Original-techn. papers.
  • Author
  • Model page created by Iven Müller. See "Data change" for further contributors.

 Collections | Museums | Literature

 Forum

Forum contributions about this model: Kenwood, Trio-: TS-520S

Threads: 1 | Posts: 3

My first post is my everyday work horse, the Kenwood TS-520S. I traded a surfboard for it some 15 years ago and I still love it. It may need some love soon. Pilot lamps have failed and the output about 75 watts to my Hustler Vertical.

How big a job is it going to be to replace the two lamps? I think there is two?



When do I think about the finals? It still get out and I can still work the world.



Pretty much an old guy here and this radio is next in line. I have recaped my two oldest shortwave radios I have had for some 50 years. Halicrafters S-77A and a Lafayette HA-63 plus five all american five am radios I picked up for cheap. I have been using them for gifts!



So I know what end of the soldering iron to grab and my technical ability is slowly coming back.



Thank you,

justin-

Justin McKeever, 03.Jan.24
