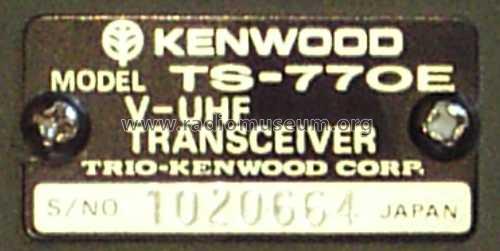

V-UHF Transceiver TS-770E
Kenwood, Trio-Kenwood Inc.; Komagane
- Country
- Japan
- Manufacturer / Brand
- Kenwood, Trio-Kenwood Inc.; Komagane
- Year
- 1979
- Category
- Amateur TRX: Transmitter/Receiver (and Transceiver)
- Radiomuseum.org ID
- 150928
-
- alternative name: Trio Corp.
- Brand: Jennen
RICOFUNK-Katalog 1980
- Number of Transistors
- 194
- Semiconductors
- Main principle
- Superhet, double/triple conversion; ZF/IF 21600/8830/455 kHz
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Line plus power jack, mostly with battery or storage battery / 50-60 Hz: 220 / 12-16 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 7.5 cm = 3 inch
- Power out
- 2.5 W (unknown quality)
- Material
- Metal case
- from Radiomuseum.org
- Model: V-UHF Transceiver TS-770E - Kenwood, Trio-Kenwood Inc.;
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 290 x 125 x 320 mm / 11.4 x 4.9 x 12.6 inch
- Notes
-

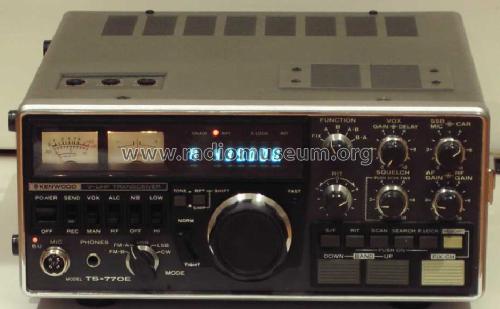

Kenwood VHF-/UHF-Transceiver TS-770E.
Frequenzbereiche: 144-146 MHz und 430-440 MHz in 12 Abschnitten á 1 MHz; Betriebsarten: SSB, CW, FM; Pout: 10 W bei SSB und CW, 1 W/10 W umschaltbar bei FM; 8 Memories; VOX; 1750-Hz-Rufton.Transmitter: SSB/CW/FM 10 Watts. Only FM : Low 1 Watt.
Microphone impedance: 500 ÷ 600 Ω. AF response of transmitter (SSB) 400 ÷ 2,600 Hz.
Repeater frequency 144-146 MHz: -600 kHz. 430-440 MHz: -7.6 MHz or + 1.6 MHz.
RPT Tone frequency 1750 Hz. Only simple mode.
Receiver. Sensitivity: SSB/CW 0.25 µV for 10 dB (S+N)/N. FM: 1 µV for 30 dB (S+N)/N.
Intermediate frequency: First: 21.6 MHz;
Second (430-440 MHz): 8.83 MHz, (144-146 MHz): 455 kHz.163 Transistors, 31 FETs, 75 ICs and 224 Diodes.
- Net weight (2.2 lb = 1 kg)
- 11 kg / 24 lb 3.7 oz (24.229 lb)
- Mentioned in
- RICOFUNK-Katalog 1980

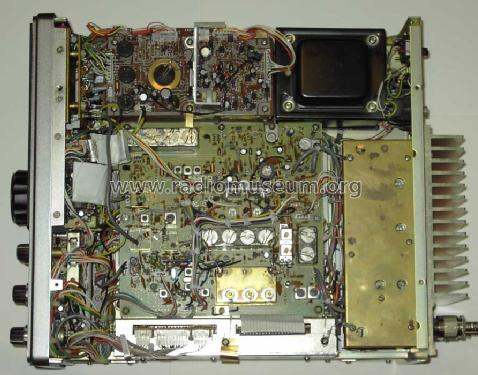

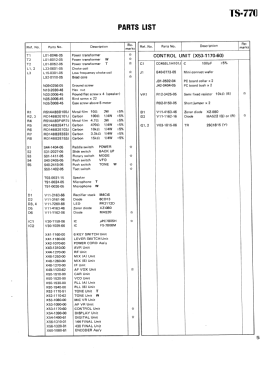

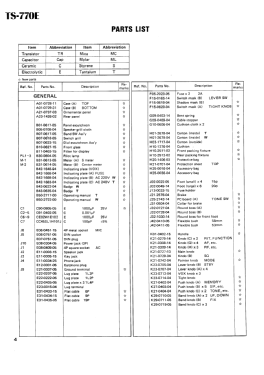

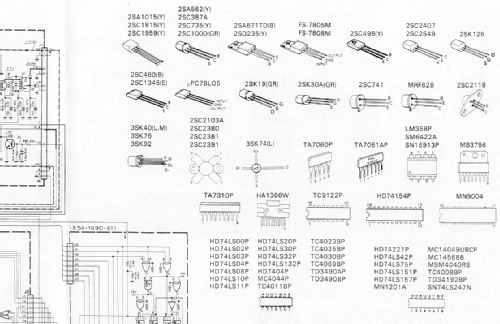

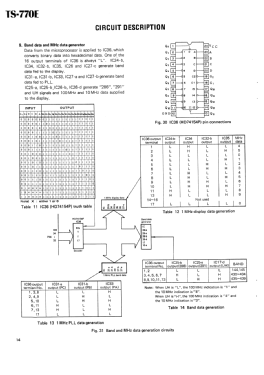

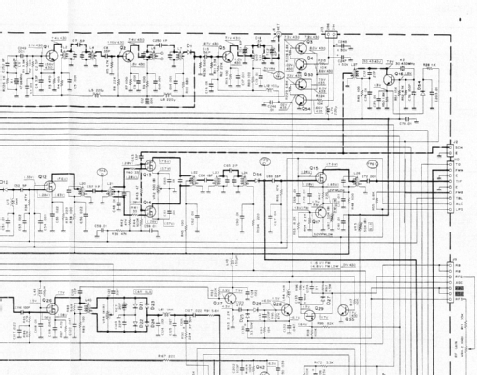

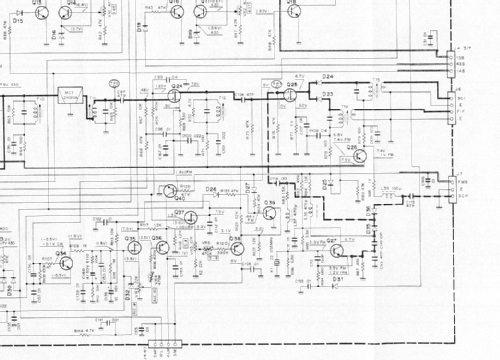

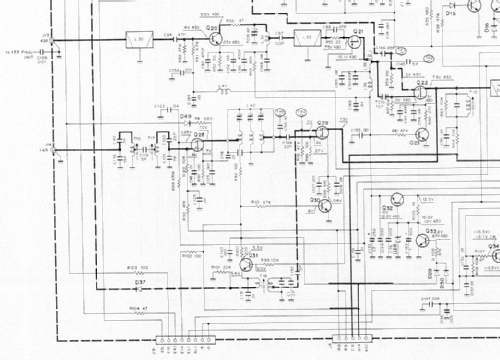

- Literature/Schematics (1)
- -- Original-techn. papers. (Original "Instruction Manual")
- Author
- Model page created by Bernd P. Kieck. See "Data change" for further contributors.
