• Country
• Japan

• Manufacturer / Brand
• Kenwood, Trio-Kenwood Inc.; Komagane

• Year
• 1981 ?

• Category
• Amateur TRX: Transmitter/Receiver (and Transceiver)

• Radiomuseum.org ID
• 74839

• • alternative name: Trio Corp.
  • Brand: Jennen

• Number of Tubes
• 3

• Valves / Tubes

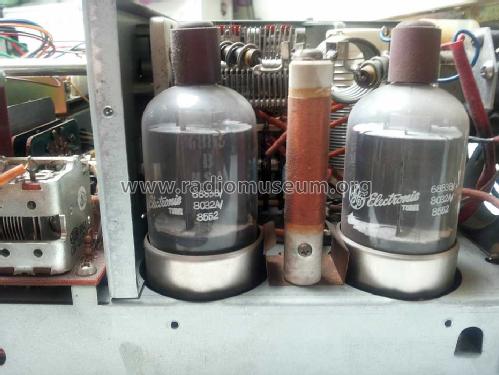

• 12BY7A 6146B 6146B

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superhet, double/triple conversion

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 120-240 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 1.5 W (unknown quality)

• Material
• Metal case

• from Radiomuseum.org
• Model: TS-830M - Kenwood, Trio-Kenwood Inc.;

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 333 x 133 x 333 mm / 13.1 x 5.2 x 13.1 inch

• Notes
• Kenwood HF-Transceiver TS-830M.
  Range: 160-10 m + WARC (WARC receiving only); Modes: SSB, CW, AM; P_out: 100 W (AM 40 W).

• Net weight (2.2 lb = 1 kg)
• 13.3 kg / 29 lb 4.7 oz (29.295 lb)

• Author
• Model page created by Iven Müller. See "Data change" for further contributors.
