Deluxe Set Tester 1601 metal case
Triplett Electrical Instrument Co.; Bluffton (OH)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Triplett Electrical Instrument Co.; Bluffton (OH)
- Year
- 1938/1939
- Category
- Service- or Lab Equipment
- Radiomuseum.org ID
- 95940
- Wave bands
- - without
- Power type and voltage
- Alternating Current supply (AC) / 110 Volt
- Loudspeaker
- - - No sound reproduction output.
- Material
- Metal case
- from Radiomuseum.org
- Model: Deluxe Set Tester 1601 [metal case] - Triplett Electrical Instrument
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 14.5 x 7.5 x 4.5 inch / 368 x 191 x 114 mm
- Notes
-
For shop use.
Multi purpose set tester.
DC Volts: 10 - 50 - 250 - 500 - 1000 - 2000 @ 25 kΩ/V
AC Volts: 10 - 50 - 250 - 500 - 1000 - 2000 @ 1 kΩ/V
DC µA 0 to 50
DC mA: 1 - 10 - 50 - 250 - 500
DC A: 1 - 2 - 20
Ohms: 500 Ω - 20 kΩ - 200 kΩ - 2 MΩ - 20 MΩ
Capacity: 1 nF to 30 µF
- Price in first year of sale
- 68.00 $
- Mentioned in

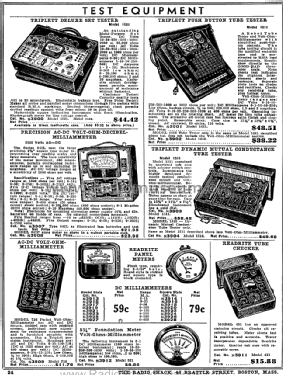

- Radio Shack Catalog (1939, page 24)
- Literature/Schematics (1)
- 1938 Radolek Catalog
- Author
- Model page created by Vitor Oliveira. See "Data change" for further contributors.
