• Country
• United States of America (USA)

• Manufacturer / Brand
• Triplett Electrical Instrument Co.; Bluffton (OH)

• Year
• 1960 ??

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 115450

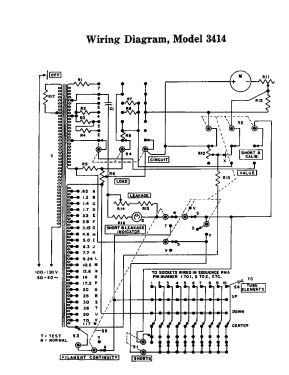

Click on the schematic thumbnail to request the schematic as a free document.

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 115 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org
• Model: Tube Tester 3414 - Triplett Electrical Instrument

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 400 x 300 x 150 mm / 15.7 x 11.8 x 5.9 inch

• Notes
• This roll-chart tube tester checks shorts and emission. Four sockets, octal, locktal, miniature seven and nine pins.

• Net weight (2.2 lb = 1 kg)
• 5.5 kg / 12 lb 1.8 oz (12.115 lb)

• Source of data
• - - Data from my own collection

• Author
• Model page created by Emilio Ciardiello. See "Data change" for further contributors.
