• Country
• United States of America (USA)

• Manufacturer / Brand
• Triplett Electrical Instrument Co.; Bluffton (OH)

• Year
• 1946

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 207517

Click on the schematic thumbnail to request the schematic as a free document.

• Wave bands
• - without

• Power type and voltage
• Dry Batteries

• Loudspeaker
• - - No sound reproduction output.

• from Radiomuseum.org

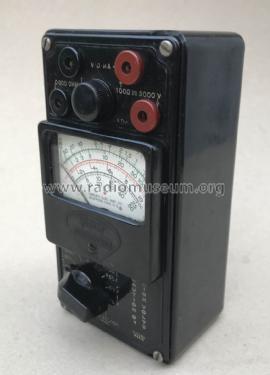

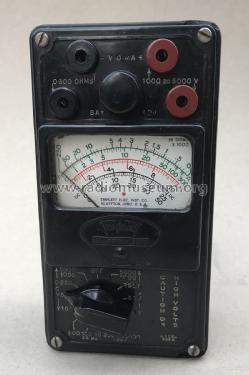

• Model: Multimeter 666H - Triplett Electrical Instrument

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 3.0625 x 5.875 x 2.125 inch / 78 x 149 x 54 mm

• Notes
• Pocket size volt-ohm-milliammeter.

• Mentioned in

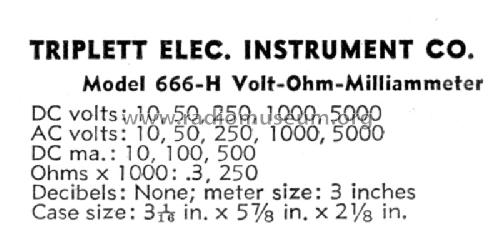

• Radio Retailing (Radio & Television R.) (May 1946 page 102. September 1946 page 109.)

• Author
• Model page created by Heiko zur Mühlen. See "Data change" for further contributors.
