• Country
• United States of America (USA)

• Manufacturer / Brand
• Triplett Electrical Instrument Co.; Bluffton (OH)

• Year
• 1940 ?

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 335892

Click on the schematic thumbnail to request the schematic as a free document.

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 110 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Wooden case

• from Radiomuseum.org
• Model: Tube Tester 1620 - Triplett Electrical Instrument

• Shape
• Tablemodel, with any shape - general.

• Notes

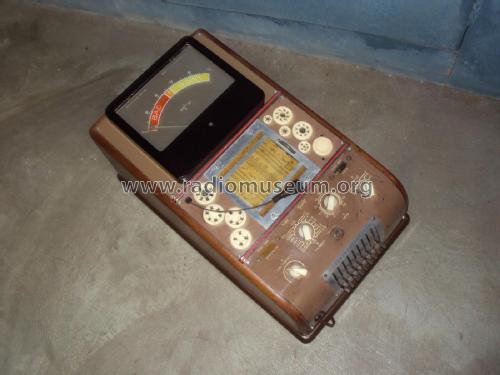

• Triplett Tube Tester 1620.

  Features a 6 inch scale and a Speed Roll Chart.

  Same schematic as Triplett Tube Tester 1621, which has a smaller meter and different layout.

• Literature/Schematics (1)
• -- Other type before this -same/similar characteristics - see exchange. (Service Radio Television, Aug. 1940, pg 30, product description)

• Author
• Model page created by Gilton Filho. See "Data change" for further contributors.
