- Country
- United States of America (USA)
- Manufacturer / Brand
- Troy Radio Mfg. Co. / Radio & Television Co.; Los Angeles, CA
- Year
- 1933 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 167734
- Number of Tubes
- 5
- Main principle
- TRF without regeneration; Screengrid 1926-1935
- Tuned circuits
- 3 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Alternating Current supply (AC) / 110 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 14 cm = 5.5 inch
- Power out
- 2 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Unknown - Troy Radio Mfg. Co. / Radio &
- Shape
- Table-Cathedral-Type (upright, round top or gothic arch, not rounded edges only).
- Dimensions (WHD)
- 250 x 320 x 190 mm / 9.8 x 12.6 x 7.5 inch
- Net weight (2.2 lb = 1 kg)
- 6 kg / 13 lb 3.5 oz (13.216 lb)
- Author
- Model page created by Enrico Puccini. See "Data change" for further contributors.
- Other Models
-
Here you find 97 models, 49 with images and 66 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Troy Radio Mfg. Co. / Radio & Television Co.; Los Angeles, CA
Collections
The model Unknown is part of the collections of the following members.
Forum contributions about this model: Troy Radio Mfg. Co.: Unknown
Threads: 1 | Posts: 1
Hello all,
I have this radio Troy (you see photograph cited) but I do not succeed to identify the model.
The radio has the following valves 35, 35, 24, 47 and 80, I ask if someone it knows this model.
Best regards,
Enrico Puccini
Attachments

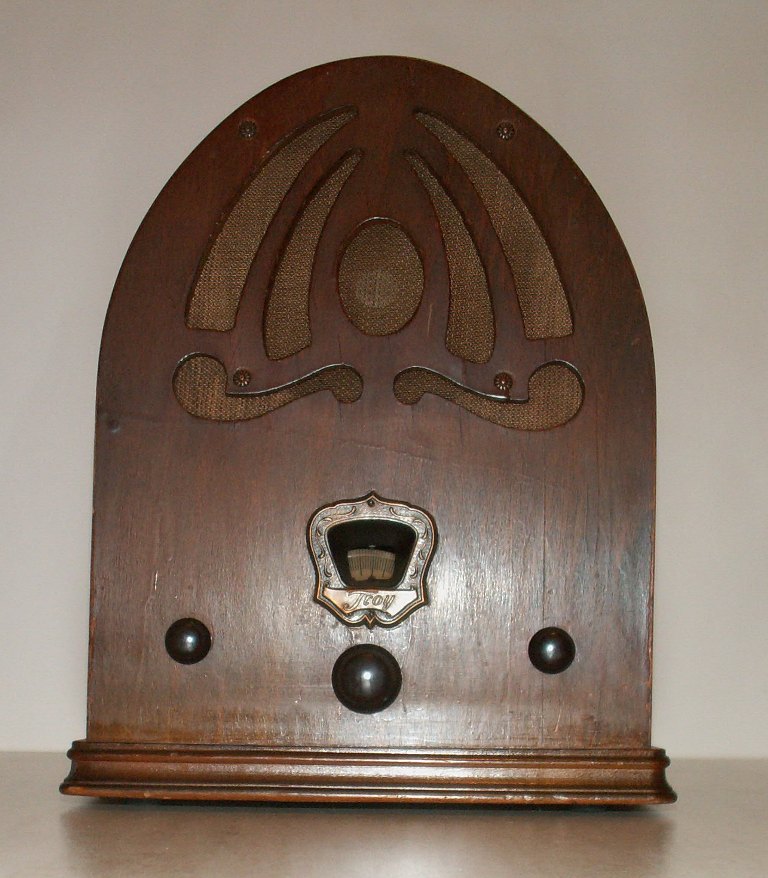

- USA_Troy (163 KB)

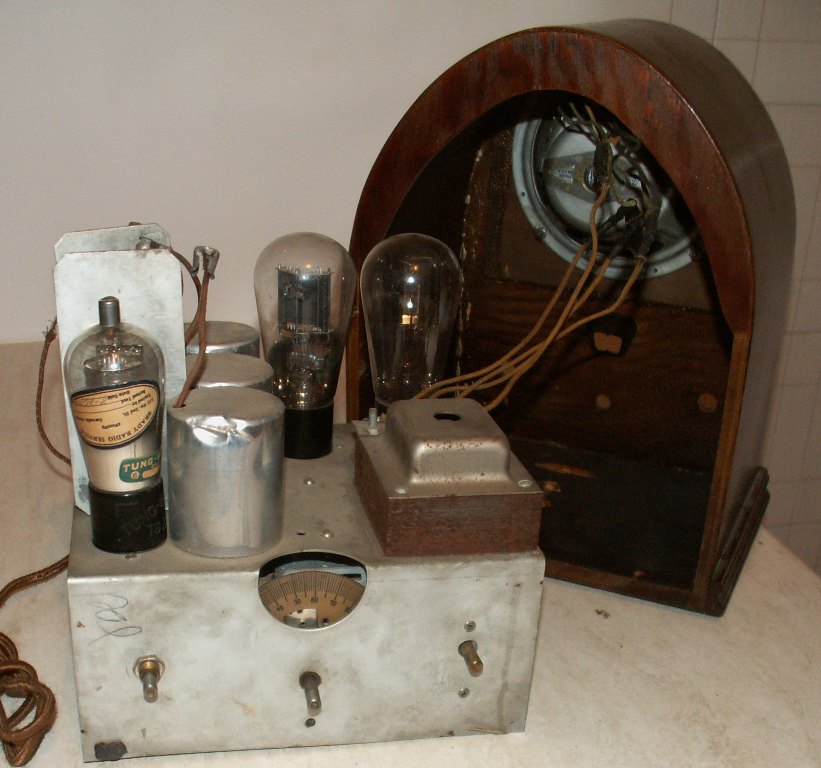

- USA_Troy_interno_1 (144 KB)

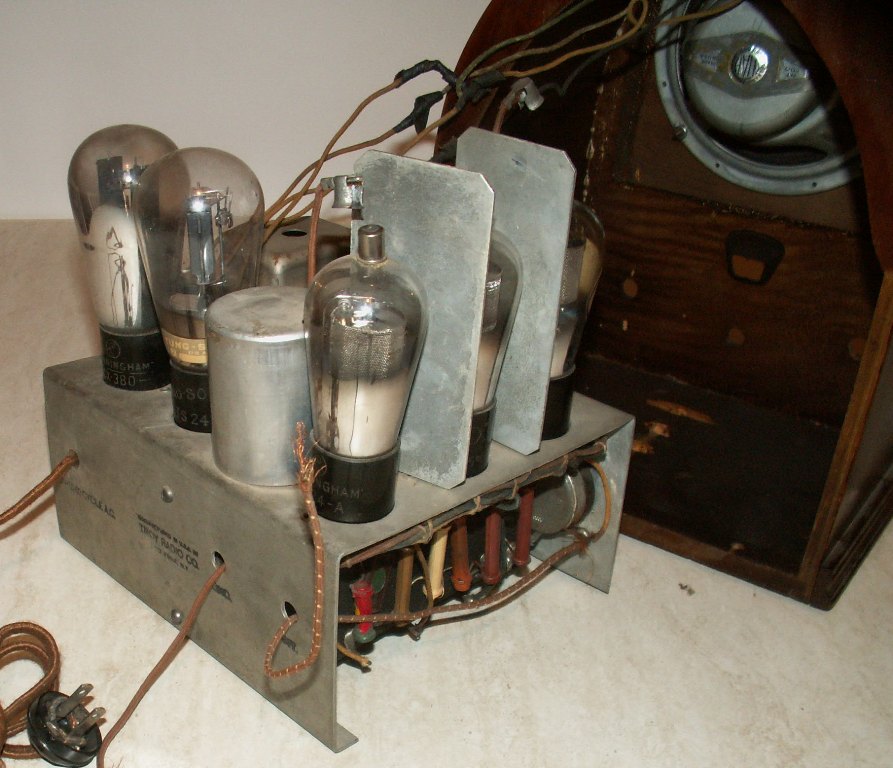

- USA_Troy_interno_2 (163 KB)
- USA_Troy_interno_3 (172 KB)
Enrico Puccini, 19.Dec.09
