Stereo Amplifier TSA-100

Truvox Ltd.; London

Data
Forum
Pictures
Collections

  • Year
  • 1964
  • Category
  • Audio Amplifier or -mixer
  • Radiomuseum.org ID
  • 352507

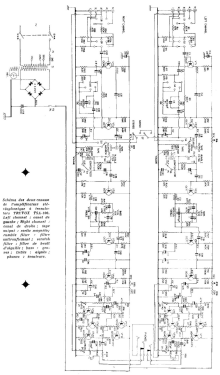

Click on the schematic thumbnail to request the schematic as a free document.

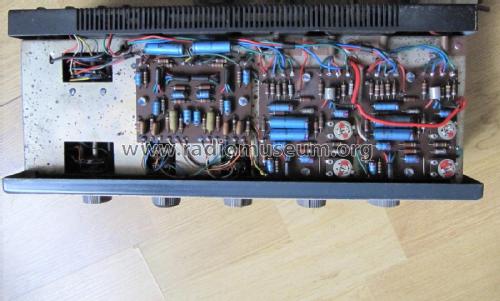

 Technical Specifications

  • Number of Transistors
  • 20
  • Main principle
  • Audio-Amplification; 16 AF stage(s)
  • Wave bands
  • - without
  • Power type and voltage
  • Alternating Current supply (AC) / 115; 205; 225; 245 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Power out
  • 20 W (undistorted)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Stereo Amplifier TSA-100 - Truvox Ltd.; London
  • Shape
  • Tablemodel, with any shape - general.
  • Dimensions (WHD)
  • 391 x 121 x 260 mm / 15.4 x 4.8 x 10.2 inch
  • Notes

  • Truvox TSA-100 Stereo Amplifier

    Specifications

    Inputs: P.U.1 – 25 mV at 50 kΩ, R.I.A.A
      P.U.2 – 3 mV at 50 kΩ, R.I.A.A
      Tape – 250 mV at 100 kΩ, Flat
      Tuner – 100 mV at 100 kΩ, Flat
      Aux – 100 mV at 100 kΩ, Flat
    Tone Controls: Bass - ±15 dB at 50 Hz,
      Treble - ±15 dB at 14 kHz
    Freq. Response: ±1 dB from 15 Hz – 30 kHz at 1 watt
      ± 1 dB from 20 Hz – 20 kHz at 10 watts
    Power Output: 10 w per channel at 15Ω
      12 w per channel at 8Ω
    Filters: Scratch filter-10 dB at 12 kHz from 6 kHz
      Rumble filter-14 dB at 20 Hz from 17 Hz
    Crosstalk: -50 dB at 1 kHz
    Tape Output: 200 mV
    Hum & Noise: -55 dB P.U.1. & P.U.2., Tape & Tuner
      -60 dB Aux



  • Price in first year of sale
  • 51.90 GBP
  • Literature/Schematics (1)
  • -- Original prospect or advert (Tape Recording, Jun 1964 page 219)
