• Country
• Japan

• Manufacturer / Brand
• TTC Quality Electronics; (where?)

• Year
• 1965 ??

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 213473

Click on the schematic thumbnail to request the schematic as a free document.

• Wave bands
• - without

• Power type and voltage
• Dry Batteries / 1,5 & 15 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Bakelite case

• from Radiomuseum.org

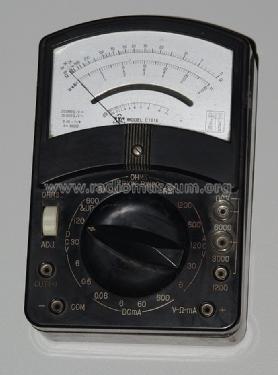

• Model: Multimeter C-1016 - TTC Quality Electronics; where

• Dimensions (WHD)
• 100 x 45 x 150 mm / 3.9 x 1.8 x 5.9 inch

• Notes

• Ranges - Messbereiche:
  DCV 0.6/6/30/120/600/1200/3000/6000;
  ACV 6/30/120/600/1200;
  DC mA 0.06/6/60/600;
  Ohms 6K/600K/6M/60M;
  Level dB -2...+17;
  Ri 20 kOhm/V DC, 10 kOhm/V AC.

  Noch 1975 in den Katalogen

  See also Olson TE-197P

• Net weight (2.2 lb = 1 kg)
• 0.7 kg / 1 lb 8.7 oz (1.542 lb)

• Price in first year of sale
• 64.00 DM

• Literature/Schematics (1)
• Arlt Katalog 1975

• Author
• Model page created by Joachim Glüder. See "Data change" for further contributors.
