• Country
• New Zealand-Aotearoa

• Manufacturer / Brand
• Turnbull & Jones Ltd.; Auckland

• Year
• 1936

• Category
• Kit (Parts plus instruction) or building instructions only

• Radiomuseum.org ID
• 351796

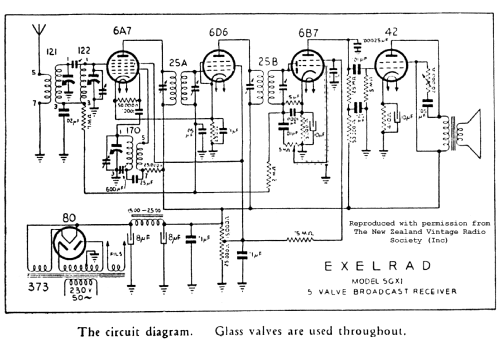

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 6A7 6D6 6B7 42 80

• Main principle
• Superheterodyne (common); 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Alternating Current supply (AC) / 50 Hz, 230 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 8 inch = 20.3 cm

• Material
• Metal case, TUBES VISIBLE

• from Radiomuseum.org
• Model: Exelrad Broadcast Superhet Five 5GX1 - Turnbull & Jones Ltd.;

• Shape
• Chassis only or for «building in»

• Notes

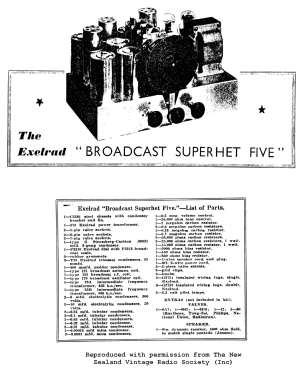

• Exelrad 5GX1 Broadcast Superhet Five Kitset.

  Valves and speaker are extras not included in the base kitset.
