Exelrad Dual-Wave Air-King Six 6DX1

Turnbull & Jones Ltd.; Auckland

Data
Forum
Pictures
Collections

  • Year
  • 1936
  • Category
  • Kit (Parts plus instruction) or building instructions only
  • Radiomuseum.org ID
  • 351769

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 6
  • Main principle
  • Superhet with RF-stage; 2 AF stage(s)
  • Tuned circuits
  • 7 AM circuit(s)
  • Wave bands
  • Broadcast and Short Wave (SW).
  • Power type and voltage
  • Alternating Current supply (AC) / 50 Hz, 230 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 8 inch = 20.3 cm
  • Material
  • Metal case, TUBES VISIBLE
  • from Radiomuseum.org
  • Model: Exelrad Dual-Wave Air-King Six 6DX1 - Turnbull & Jones Ltd.;
  • Shape
  • Chassis only or for «building in»
  • Notes

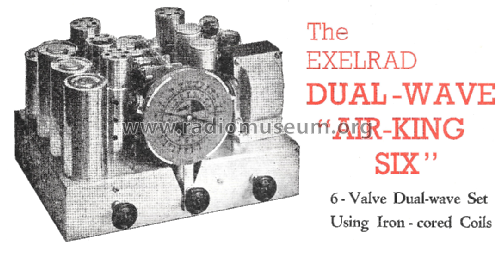

  • Exelrad 6DX1 Dual-Wave Air-King Six

    6-valve superhet with RF stage dual-wave kitset receiver.

    A modern version of the ever-popular Air King Six. Improved coils and circuit design have made this new Kit as one capable of amazing performance. A two-colour dial is supplied, calibrated so that stations may be easily located. Shortwave band covers from 16 to 50 metres, where many stations from every corner of the world may be received at wonderful volume, together with beautiful tone...features for which this set is noted.

    • Complete Kit, including Valves and 8in, Speaker £16/10/-
    • Completely assembled and tested £17/13/-.
    • Coil Kit only £6/3/-
    • Complete kit less valves and speaker £11/10/-.
  • Author
  • Model page created by Brian Stevens. See "Data change" for further contributors.
