• Country
• United States of America (USA)

• Manufacturer / Brand
• Tuska Co., The C.D.; Hartford, CT

• Year
• 1922/1923

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 182514

• • Brand: Superdyne

• Number of Tubes
• 3

• Valves / Tubes
• UV200 UV201 UV201

• Main principle
• TRF with regeneration

• Tuned circuits
• 1 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Storage and/or dry batteries

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Wooden case

• from Radiomuseum.org
• Model: 225 224/226 [Split Panel] - Tuska Co., The C.D.; Hartford,

• Shape
• Tablemodel, Box - most often with Lid (NOT slant panel).

• Dimensions (WHD)
• 19 x 7 x 7 inch / 483 x 178 x 178 mm

• Notes

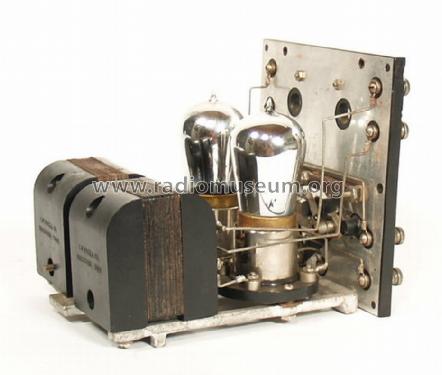

• This is the Tuska Model 225 Split Panel receiver. It used the 224 chassis and the 226 two stage amp in a split panel arrangement all in one box.

• Price in first year of sale
• 75.00 $

• Mentioned in
• Radio Manufacturers of the 1920's, Vol. 3 (p.205)

• Author
• Model page created by Alan Larsen. See "Data change" for further contributors.

• Other Models

• Here you find 20 models, 17 with images and 5 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Tuska Co., The C.D.; Hartford, CT
