All Purpose Radio 50

Tyrman Electric Corporation; Chicago, IL

Data
Forum
Pictures
Collections

  • Year
  • 1927 ?
perfect model
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 227345

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • TRF without regeneration; 2 AF stage(s)
  • Tuned circuits
  • 2 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • Dry Batteries
  • Loudspeaker
  • Horn
  • Material
  • Leather / canvas / plastic - over other material
  • from Radiomuseum.org
  • Model: All Purpose Radio 50 - Tyrman Electric Corporation;
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 12.5 x 14.5 x 8.75 inch / 318 x 368 x 222 mm
  • Notes

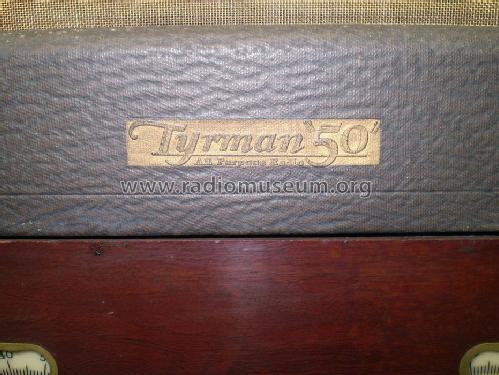

  • Battery powered "Tyrman "50" "All Purpose Radio". Two-dial portable Radio.

    According to Tyne, page 318, the tube UX222 arrived October 1927.

  • Net weight (2.2 lb = 1 kg)
  • 26 lb (26 lb 0 oz) / 11.804 kg
  • Price in first year of sale
  • 54.00 USD
  • Author
  • Model page created by Alan Larsen. See "Data change" for further contributors.
