519-K B-2 W
UCOA; Buenos Aires
- Country
- Argentina
- Manufacturer / Brand
- UCOA; Buenos Aires
- Year
- 1948
- Category
- Kit (Parts plus instruction) or building instructions only
- Radiomuseum.org ID
- 102917

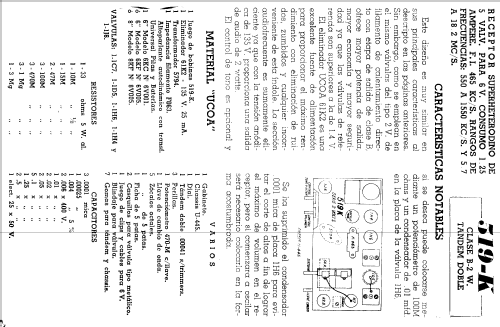

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 465 kHz; 2 AF stage(s)
- Tuned circuits
- 2 AM circuit(s)
- Wave bands
- Broadcast and Short Wave (SW).
- Power type and voltage
- Storage and/or dry batteries / 6 Volt
- Power out
- 2 W (unknown quality)
- from Radiomuseum.org
- Model: 519-K B-2 W - UCOA; Buenos Aires
- Notes
- Five 6.3 volts tubes, 1.25 Amps, vibrator power supply. BCB band from 550 to 1550 kHz and shortwave from 5.7 to 18.2 MHz.
- Mentioned in
- -- Original-techn. papers.
- Author
- Model page created by Mario Bermejo. See "Data change" for further contributors.
