616K U445-6V
UCOA; Buenos Aires
- Country
- Argentina
- Manufacturer / Brand
- UCOA; Buenos Aires
- Year
- 1948
- Category
- Kit (Parts plus instruction) or building instructions only
- Radiomuseum.org ID
- 105146

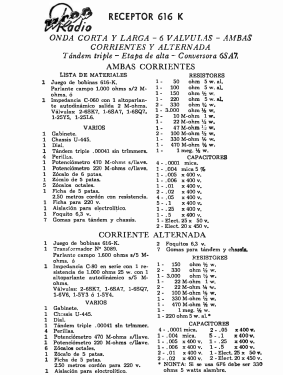

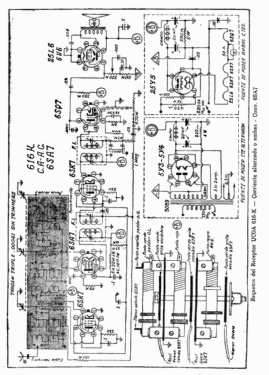

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common); ZF/IF 465 kHz; 2 AF stage(s)
- Tuned circuits
- 3 AM circuit(s)
- Wave bands
- Broadcast and Short Wave (SW).
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 inch = 15.2 cm
- Power out
- 2.5 W (unknown quality)
- from Radiomuseum.org
- Model: 616K U445-6V - UCOA; Buenos Aires
- Notes
- The circuit can be built using AC/DC power supply in which case it uses 25L6 as output tube and 25Y5 as rectifier, or using AC transformer in which case it uses 6V6 as output tube and 5Y3 or 5Y4 as a rectifier. The power output reaches 4W when using AC transformer. Schematic and parts list shows both options.
- Mentioned in
- -- Original-techn. papers.
- Author
- Model page created by Mario Bermejo. See "Data change" for further contributors.
