Amplificador UCOA Push-Pull 6L6 60Watts
UCOA; Buenos Aires
- Country
- Argentina
- Manufacturer / Brand
- UCOA; Buenos Aires
- Year
- 1940 ?
- Category
- Audio Amplifier or -mixer
- Radiomuseum.org ID
- 122392

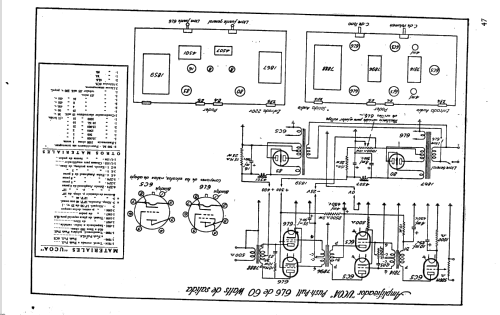

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Power out
- 60 W (unknown quality)
- Material
- Metal case, TUBES VISIBLE
- from Radiomuseum.org
- Model: Amplificador UCOA Push-Pull 6L6 60Watts - UCOA; Buenos Aires
- Shape
- Rack
- Notes
- Construccion en 2 chasis: U-103 amplificador- U-104 fuente de poder
- Mentioned in
- - - Manufacturers Literature
- Author
- Model page created by Heriberto Tavella. See "Data change" for further contributors.
